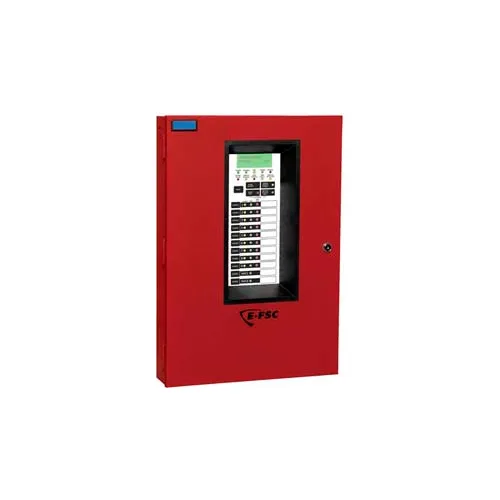

- The E-FSC302 fire alarm panels consists of 3 zone conventional fire alarm control panels, an integrated DACT/Dialer, serial annunciator modules, and serial remote relay modules. All of these components are microprocessor-controlled.
- E-FSC Series family is ideal for both new and retrofit installations alike.
- E-FSC Series incorporates features designed to simplify installation, operation and maintenance.
- Front panel programming, one person walk testing, and selectable IDC and NAC types.
- E-FSC Series panels are powerful enough to meet the demands of today s installations while leaving plenty of room to grow in the future.
- IDC or NAC pairs convertible to single Class A circuits
- Combination Waterflow and Supervisory IDCs
- NACs programmable by zone and individually selectable for Genesis, continuous, temporal outputs, or coded
- Front panel programmable simplifies installation and servicing PC programmable with optional DACT installed
- Genesis option allows precision synchronization and audible silence over two wires without additional modules
- On-board relays for Alarm, Supervisory and Trouble
- Optional serial bus relay modules are programmable for common or zone activation
- Optional serial bus remote annunciator family
- One person walk-test (audible or silent)
- Optional City Tie and Reverse Polarity Modules
- Trim ring available for semi-flush mounting
- Optional fully integrated DACT/Dialer for PC programming
- Supports Edwards ED2M, SC and 2400 series detectors and ESL 400, 500 and 700 series detectors
Edwards Signaling, FX-5RD, Conventional Fire Alarm Control Panels, 3 Zone, 120V, Red With Dialer
Write a Review
|
Questions & Answers (0)
Product Description
Features:
PRICE
$989.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Product Details
| Description | Fire Alarm Control Panels |
| Power Supply | 4.25A |
| Operating Temperature | 39 - 120°F |
| Compatible Part/Model Number | E-FSC |
| Operating Humidity | 93% |
| Brand | Edwards Signaling |
Compliance & Certifications
| Certifications | UL, ULC, CSFM |
