Eagle

Model # :WBB1131734

MPN #: 153120H2-MS230

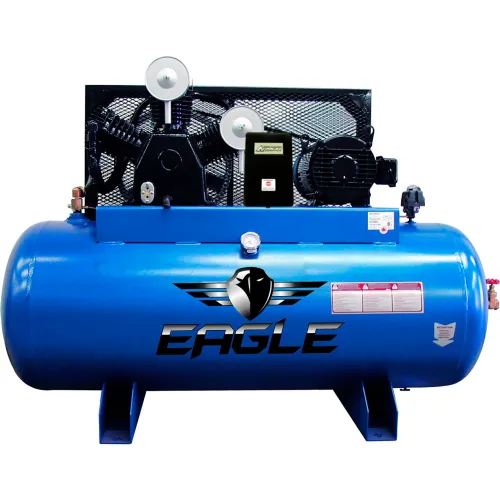

Eagle 153120H2-MS230, 15 HP, Two-Stage Compressor, 120 Gal, Horiz., 200 PSI, 44.7 CFM, 3-Phase 230V

Product Description
Eagle 153120H2-MS230, 15 HP, Two-Stage Compressor, 120 Gal, Horiz., 200 PSI, 44.7 CFM, 3-Phase 230V


Features:
  • Rugged Compressor with Cast Iron Cylinders
  • "V" Design Minimizes vibration, Improves cooling And Extends compressor Life
  • Individual And removable Cylinders for Smoother And cooler Operation
  • Heavy Duty Pressure switch Has On/Off control
  • Thermally Protected10 And 15 Hp Three phase 208/230/460Volt Or Three Phase575 Volt Electric motors
  • Metal Air Filters With "Auto Drop" Feature
  • Convenient Oil Drain on Front Of Unit
  • 120 Gallon Asmeregistered Tank,200 Psi Rating
  • Easy View Oil Sight gauge
  • High Efficiency Reed valves For Maximum performance
  • Efficient Heat Removal from Pulley-Fan For cooler Running And longer Life
  • Sturdy Metal Belt guard
  • Outlet Valve Included
PRICE
$7,799.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length76 in
Width40 in
Height61 in
Weight972 lbs
Tank Size120 gal
Tank Outlet1"

Product Details

Oil TypeOil Lubricated
Air DryerNo
Oil SystemSplash Lubricated
Pump DriveBelt Drive
Pump MaterialCast Iron
Tank Drain ValveManual
Max PSI200 psi
Phase3
Tank OrientationHorizontal
Oil Sight GlassYes
Manufacturers Part Number153120H2-MS230
Pump TypeTwo-Stage
Low Oil ShutoffNo
BrandEagle
CFM44.7 CFM
Horsepower15 HP
ColorBlue
After CoolerNo
Voltage230 V
Air FilterYes

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsASME Certified
