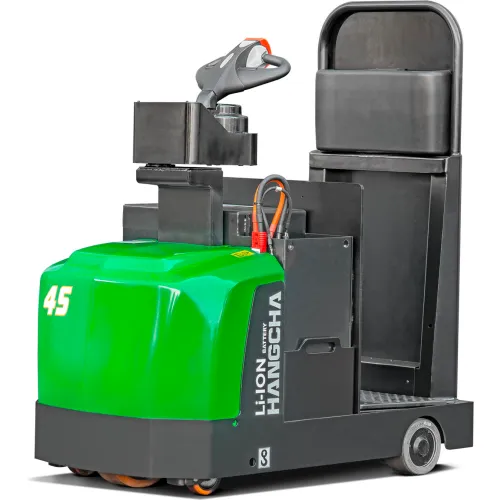

Basic Truck Configuration: 24 Volt 10,000lbs capacity Curtis Controller with Li-ion Battery, AC Drive motor, Electric horn, Emergency disconnect switch, PU Drive Tires, Caster wheels, Rubber Load wheels, Battery side extraction, Electric Power Steering, Key switch, electronic parking brake, Multi-function LCD display, Standard Tow Pin. Options: Operator fan, Rear blue LED light, storage box, 1 phase/220V Rema charger.
High Performance
- The electric power steering system helps operators to easily maneuver the tow tractor
- The maintenance-free, high-power, brushless AC traction motor has excellent acceleration, performance, good climbing ability, and low heat generation
- The CURTIS control system provides accurate, stable, and more efficient control of the AC traction motor
- The CANBUS structure makes the communication between the different parts of the truck faster and more reliable
- The tow tractor uses the regenerative braking system to prevent it from sliding down a ramp
- The switches, controller, connectors, and battery plug are all parts from industry-known suppliers to ensure reliability, performance, and ease of service
- The larger operating compartment, double pedal cushion, and ergonomic backrest provides a comfortable workspace for the user
- Thanks to the tiller's design, all operations can be completed with one hand
- When in turtle mode, the truck can be driven slow easily, and more accurately
- The tow tractor is designed to provide excellent visibility while it is being operated
- The operator is able to get on and off the tow tractor with ease thanks to how the operator platform is designed
- With a high-strength steel frame structure, the truck's frame has a large residual load capacity and a long service life
- The auxiliary wheel uses a shock absorber–torsion bar structure to ensure that the forklift has good stability
- The electrical system uses waterproof connectors and protection on the wires and cables to improve the electronic's reliability
- The tow tractor features both release and emergency brakes to ensure safe driving
- When the operator releases the pedal while driving, the truck will automatically reduce its travel speed and steering angle
- The truck also disables the lifting and lowering functions to ensure operator safety
- When the "rabbit" switch is turned on, the driver automatically reduces the maximum steering angle to avoid the danger of sudden large-angle turns at high speed
- The multi-functional, large screen instrument display includes the battery display, real-time speed, and self-diagnostic functions to facilitate maintenance and operation
- The maintenance hatch opens to allow for easy access to all of the truck's components
- The spindles are equipped with lubricated sleeves and oil cups to facilitate maintenance and promote a long service life
