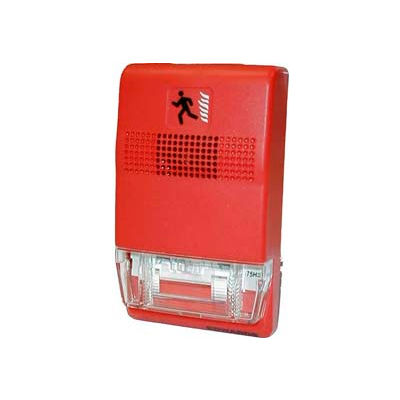

Edwards Signaling, EG1R-HD, Genesis Temp Horn, Hi-Lo, Red

Edwards Signaling, EG1R-HD, Genesis Temp Horn, Hi-Lo, Red

Item #: WBB790155

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $31.95

Save $1.60 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Edwards Signaling, EG1R-HD, Genesis Temp Horn, Hi-Lo, Red

Features:

  • Unique low-profile design
  • Attractive appearance
  • Ultra-slim - protrudes less than one inch from wall
  • No visible mounting screws
  • Exclusive FullLight Strobe Technology
  • Low current draw
  • 15/30/75/17 and 95-177 candela output models
  • High (default) or low dB horn
  • Temporal (default) or steady horn
  • Public mode flash rate (default) or private mode temporal flash
  • The Genesis line of signals are the smallest, most compact audible and visible emergency signaling devices in the world.
  • Size of a deck of playing cards, these devices are designed to blend with any building environment.
  • Edwards Genesis horn/strobes do not require bulky specular reflectors.
  • Exclusive mask-and-cavity design, channels and conditions light to produce a highly controllable distribution pattern.
  • Intensive development employing this new technology have given rise to a new benchmark in strobe performance-FullLight technology.
  • The EG1-HDVM series horn/strobes offer 15 to 17 candela output, l which is selectable with a conveniently-located switch on the side of the device.
  • EG1-HDVMH series offers 95 to 177 candela output.
  • Candela output setting remains clearly visible even after final installation, yet it stays locked in place to prevent unauthorized tampering.
  • Horn output reaches as high as 99 dB and features a unique multiple frequency tone that results in excellent wall penetration and an unmistakable warning of danger.
  • Horns may be configured for either coded or non-coded signal circuits.
  • Can also be set for low dB output with a jumper cut that reduces horn output by 5 dB.
  • When installed with the Cat. No. EG1M Signal Master, strobe flashes from devices on the same circuit are synchronized to within 7 milliseconds of each other indefinitely.
  • Signal Master also permits independent horn control over a single pair of wires.
  • Signal Master is required per circuit.
  • No separate backbox-simply snap it onto the back of the first signal on the circuit.

Product Specifications

  • CONSTRUCTIONPlastic
  • DESCRIPTIONHorn
  • MANUFACTURERS PART NUMBEREG1R-HD
  • MOUNT TYPESurface Or Flush, Wall
  • BRANDEdwards Signaling™
  • SIGNAL TYPEHorn
  • HORNSelectable High/Low Db
  • LENSClear
  • MARKINGNone
  • STROBEHorn only
  • COLORRed
  • APPROVALSUL, ULC, CSFM
  • LED COLORSRed
  • TO BE USED WITHEG1
