Marathon Motors Explosion Proof Motor, U002A, 1.5HP, 208-230/460V, 1800RPM, 3PH, EPFC

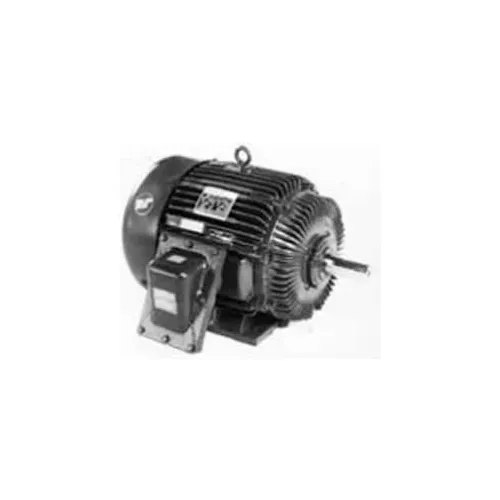

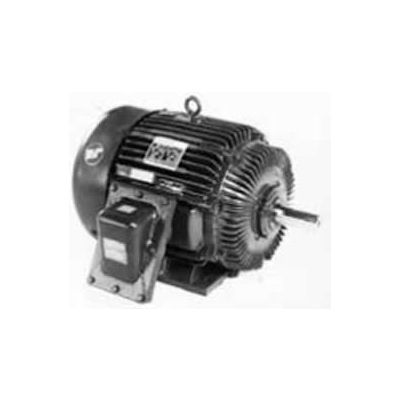

Actual product may differ from image shown

Marathon Motors Explosion Proof Motor, U002A, 1.5HP, 208-230/460V, 1800RPM, 3PH, EPFC

Item #: WBB869380

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $969.00

$161.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Explosion Proof Motor, G661, 56T17G5313, 3/4HP, 208-230/460V, 1800RPM, 3PH, EPFC

Marathon Motors Explosion Proof Motor, G661, 56T17G5313, 3/4HP, 208-230/460V, 1800RPM, 3PH, EPFC

Touch Screen Hi Vis Yellow Nylon Shell Coated Gloves, Gray PU Palm Coat, XL - Pkg Qty 12

Touch Screen Hi Vis Yellow Nylon Shell Coated Gloves, Gray PU Palm Coat, XL - Pkg Qty 12

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Marathon Motors Explosion Proof Motor, G827, 056T17E5310, 1/4HP, 208-230/460V, 1800RPM, 3PH, EPNV

Marathon Motors Explosion Proof Motor, G827, 056T17E5310, 1/4HP, 208-230/460V, 1800RPM, 3PH, EPNV

Marathon Motors Explosion Proof Motor, C646, 5KC36PNB169X, 1/4HP, 115/230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, C646, 5KC36PNB169X, 1/4HP, 115/230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G872, 56C17G5328, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G872, 56C17G5328, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

HyFlex® Lite Polyurehtane Coated Gloves, Ansell 11-600, Size 9, Black/Gray, 1 Pair - Pkg Qty 12

HyFlex® Lite Polyurehtane Coated Gloves, Ansell 11-600, Size 9, Black/Gray, 1 Pair - Pkg Qty 12

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

HyFlex® Lite Polyurehtane Coated Gloves, Ansell 11-600, Size 8, Black/Gray, 1 Pair - Pkg Qty 12

HyFlex® Lite Polyurehtane Coated Gloves, Ansell 11-600, Size 8, Black/Gray, 1 Pair - Pkg Qty 12

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Marathon Motors Explosion Proof Motor, U002A, 1.5HP, 208-230/460V, 1800RPM, 3PH, EPFC

Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.

Product Details

  • 60 Hertz kW 1.119 kW
  • Mounting Location Rigid
  • Bearing Drive End 205
  • Assembly Required F1 Only
  • 50 Hertz Kilowatts 0.75 kW
  • RPM 1800 rpm
  • Hazardous Location EXP PROOF CL I GR D CL II GR F&G T3B
  • 50 Hertz FLE 85 FLE
  • Ambient Temperature 40 °C
  • KVA Code M
  • IP Code 54
  • Insulation Class F
  • 50 Hertz SF 1.15
  • RPM Range 1701-1800 rpm
  • 50 Hertz Horsepower 1 HP
  • Voltage 208-230/460 V
  • Frame 145T
  • Service Factor 1.15
  • Horsepower 1-1/2 HP
  • Enclosure Type Explosion Proof
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure EPFC
  • Phase 3
  • Orientation Horizontal
  • 60 Hertz RPM 1800 rpm
  • Starting Type Line or Inverter
  • 50 Hertz RPM 1500 rpm
  • Full Load Efficiency 86.5
  • Brand Marathon Motors
  • Full Load Amps 4.7-4.6/2.3 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Hertz 60/50 Hz
  • Motor RPM 50 Hertz 1500 rpm
  • Manufacturers Part Number U002A
  • 50 Hertz Full Load Amps 4.2/2.1 FLA
  • 50 Hertz Voltage 190/380 V

Compliance & Certifications

  • NEMA Design B
  • CSA Certified N
  • UL UL Listed
  • CE Approved N

Weights & Dimensions

  • Drive End Bearing Size 6205
  • Opposite End Bearing Size Ball
  • Weight 76 lbs
