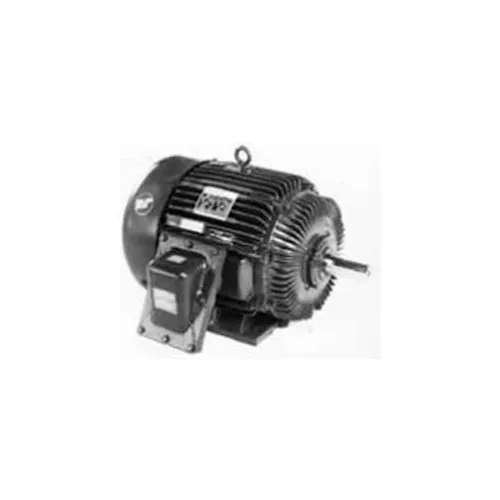

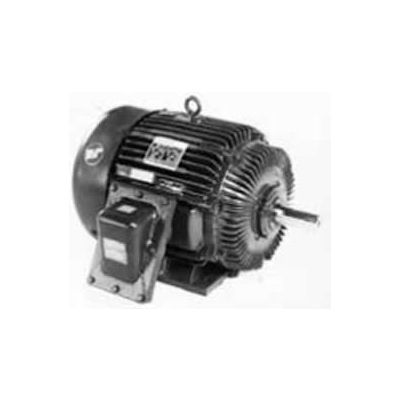

Marathon Motors Explosion Proof Motor, U042A, 213TTGS1076, 3HP, 230/460V, 1200RP

Actual product may differ from image shown

Marathon Motors Explosion Proof Motor, U042A, 213TTGS1076, 3HP, 230/460V, 1200RP

Item #: WBB869590

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,042.00

$173.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Explosion Proof Motor, U042A, 213TTGS1076, 3HP, 230/460V, 1200RPM, 3PH, EPFC

Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.

  • HORSEPOWER 3
  • ENCLOSURE EPFC
  • FRAME 213T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1200
  • MOTOR RPM 50Hz 1000
  • RPM 1200/1000
  • PHASE 3
  • VOLTAGE 230/460
  • HERTZ 60/50
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Explosion Proof
  • OPPOSITE END BEARING Ball
  • WEIGHT 236
  • UL UL Listed
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER U042A
  • RPM RANGE 1101-1200
  • INSULATION CLASS F
  • HAZARDOUS LOCATION EXP PROOF CL I GR D T2A
  • INVERTER SPEED RANGE Constant 2:1
  • FL AMPS 9/4.5
  • OPPOSITE END BEARING SIZE 206
  • DRIVE END BEARING SIZE 307
  • ASSEMBLY F1 (F2 Modification Available)
  • ORIENTATION Horizontal
  • BEARING-DRIVE-END 307
  • IP CODE 54
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE N
  • 50 Hertz kW 1.49
  • 50 Hertz HP 2
  • 50 Hertz SF 1.15
  • FL EFFICIENCY 87.5
  • 50 Hertz FL Amps 7.8/3.9
  • 50 Hertz Voltage 190/380
  • 50 Hertz FL eFF 86.50 Percent
  • KVA-CODE K
  • is_motor Yes
  • 60 HERTZ kW 2.24
  • 60 HERTZ RPMS 1200
  • MODEL NUMBER 213TTGS1076
