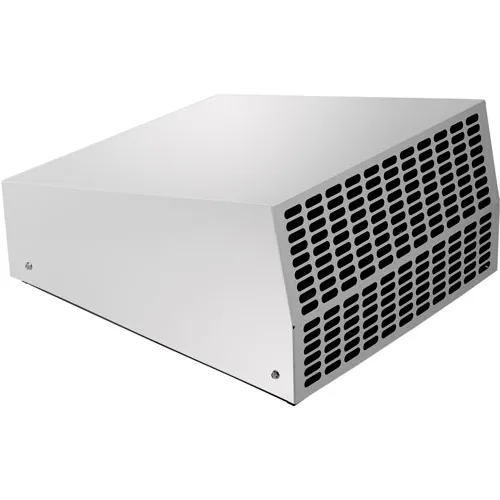

Fantech Exterior Wall Mount 6" Centrifugal Duct Fan RVF6, 115V, 242 CFM
The RVF models are exhaust-air fans for installation on external walls. The unit consists of an impeller with backward-curved blades and a casing in galvanized sheet steel with a white powder-paint coating. When installed on an exterior wall, all ambient noise is kept outside. Get Connected With Ease. These fans are lightweight, compact, and simple to install. No installation extras are required. Just mount the fan to the wall and connect the electrical supply to the conveniently located terminal box. The housing is removable for immediate access to the motor and wiring connections.
Features:
The RVF models are exhaust-air fans for installation on external walls. The unit consists of an impeller with backward-curved blades and a casing in galvanized sheet steel with a white powder-paint coating. When installed on an exterior wall, all ambient noise is kept outside. Get Connected With Ease. These fans are lightweight, compact, and simple to install. No installation extras are required. Just mount the fan to the wall and connect the electrical supply to the conveniently located terminal box. The housing is removable for immediate access to the motor and wiring connections.
Features:
- Galvanized steel housing features powder-coat finish
- External rotor motor with totally enclosed design allows fans to operate in high moisture, lint and dust laden air
- Permanent split capacitor motors feature automatic reset thermal overload protection and sealed ball bearings for long life and maintenance-free operation
- All motors and impellers are designed as one integral unit, allowing for excellent motor heat dissipation, even at low RPM
- Permanently lubricated sealed ball bearings
- Five-year factory warranty
- Energy Star, HVI certified, cSAus, cULus
Product Details
- RPM High 2,379 rpm
- Voltage 115 V
- Description Exterior Wall Mount Centrifugal Duct Fan
- Speed Controllable N
- Amperage 0.75 A
- CFM High 242 CFM
- Motor Type ERM
- Phase 1
- Watts 92.7 W
- Brand Fantech
- Warranty 5 yr
- Material Aluminum
- Hertz 60 Hz
- Manufacturers Part Number RVF6
- Color Family Tan
Weights & Dimensions
- Width 6 in
- Duct Size 6 in
- Inlet/Outlet Diameter 6 in
- Length 10-1/4 in
- Height 13 in
- Weight 10 lbs
Compliance & Certifications
- Certifications HVI, cULus, cCSAus
Photo/Video Gallery
Customer Review
Product Q & A
There are 1 questions and 1 answer for this product.
-
Can this fan be used on an exhaust for a cooktop?
Question Asked By: Marcus, September 26, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Marcus, Yes it can be used for a cooktop exhaust. Thank you for your interest in our product!
-
