Features:
- 100% speed-controllable
- Shallow profile with no protruding motor
- All fans include motor side guards as standard
- Three-year warranty
- UL, cUL Listed and AMCA Certified

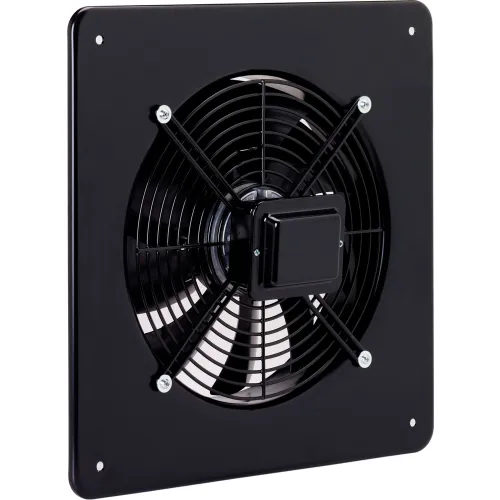

Fantech Fantech 16" Axial Fan FADE 16-4, 120V, 1 PH, 3060 CFM
Write a Review
|
Questions & Answers (0)
Product Description
All FADE Series fans combine aerodynamically designed propeller blades and rotor motor into one expertly integrated unit. Fans feature a heavy gauge galvanized steel and powder coated finish casing. Fantech's FADE Series fans move a lot of air, yet are statically and dynamically balanced for vibration-free operation. The external rotor motorized propeller provides excellent heat dissipation, even at low RPM. Rated for continuous duty.
Features:
Features:
PRICE
$689.00
1
1
Ships in 20 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 17-1/4 in |
| Width | 17-1/4 in |
| Height | 22-3/4 in |
| Weight | 25 lbs |
| Fan Diameter | 16 in |
Product Details
| Number of Speeds | Variable |
| For Use With | FAT10, WC15 |
| Operating Temperature | Up To 158°F |
| Motor Type | Totally Enclosed External Rotor Motor |
| Wattage | 290 W |
| Peak Fan Power Input | 290 BHP |
| Material | Galvanized Steel |
| Phase | 1 |
| Manufacturers Part Number | FADE 16-4 |
| Indoor/Outdoor | Indoor |
| Brand | Fantech |
| RPM | 1637 rpm |
| CFM | 3060 CFM |
| Horsepower | 3/8 HP |
| Color | Black |
| Amperage | 2.70 A |
| Drive Type | Direct Drive |
| Hertz | 60 Hz |
| Sones | 12 |
| Speed Controllable | Y |
| RPM High | 1,637 rpm |
| Voltage | 120 V |
| CFM High | 3060 CFM |
| Description | Axial Fan |
Warranty
| Warranty | 3 yr |
Compliance & Certifications
| Certifications | AMCA Air, AMCA Sound, cULus |
