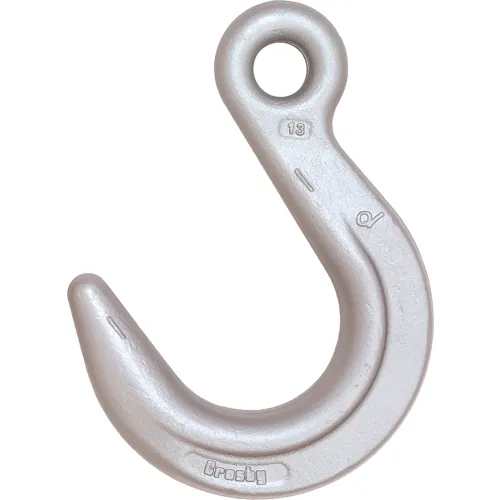

Crosby G100 Chain Eye Foundry Hook 3/8", 8800 LBS WLL A-1329

Material: Grade 70, Size: 5/16" x 20 feet, Chain Assemblies in a Barrel Working Load Limit: 4,700 lbs./2135 kgs. Assembly Weight: 21.7 lbs., 9.9 kgs. Weight: 21.7 lbs., 9.9 kgs.

The most complete line of Eye hoist hooks. Available in carbon steel and alloy steel. Designed with a 5:1 Design Factor for (Carbon Steel); 4.5:1 Design Factor for 30t - 60t (Alloy Steel). Eye hooks are load rated. Proper design, careful forging and precision controlled quenched and tempering give maximum strength without excessive weight and bulk. Every Crosby Eye Hook is equipped with a latch. Even years after purchase of the original hook, latch assemblies can be added. (See pages 121 - 123) Chemical analysis and tensile tests performed on each PIC to verify chemistry and mechanical ...

Forged - Quenched and Tempered. Swivel hooks are load rated. Proper design, careful forging, and precision controlled quench and tempering gives maximum strength without excessive weight and bulk. Low profile hook tip designed to utilize Crosby S-4320 or PL-N atch kit. Even years after purchase of the original hook, latch assemblies can be added. Hoist hooks incorporate markings forged into the product which address two (2) QUIC-CHECK® features: Deformation Indicators -- Two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows for a ...

All pins Alloy Steel - Quenched and Tempered. Body is forged and heat treated carbon steel. Designed for linking all popular sizes of Grade 3 and Grade 4 chain to rings, end links, eye hooks, pad eyes, tractor eye bolts, etc. Features quick and easy assembly.

Forged Alloy Steel - Quenched and Tempered. Innovative cradle design allows for 100% efficiency of Grade 100 chain Individually Proof Tested to 2-1/2 times the Working Load Limit with certification Each hook has a Product Identification Code (PIC) for material traceabilit , along with the size and the name Crosby. Suitable for use with Grade 100 and Grade 80 chain. The use of A-1338 Cradle Grab Hook will allow 100 percent of the chain sling capacity. When used to hook back to chain leg to form a choker, the angle of the choke must be 120 degrees or greater. When used as a chain shortener, ...
