- 1.5 hp motor requires 110 volts of power and will run in any fabrication or machine shop.
- Maximum capacity of up to 1" mild steel.
- Transmission offers multiple speeds (125, 420, 535, and 1740 rpm) for drilling and tapping an array of different materials.
- Sturdy 4" diameter column reduces flexing to ensure accurate results.
- You can easily adjust the gear head up or down on the column.
- Comes standard with a heavy cast iron base and adjustable table.
- Includes a protective guard around the spindle for your safety.
- Bright halogen work light bends to provide visibility where you need it.
- Baileigh covers this drill press with a 1-year warranty plus lifetime technical support by phone.
- Need this gear-driven drill press soon? No problem, we keep the DP-1000G in stock for quick shipping.

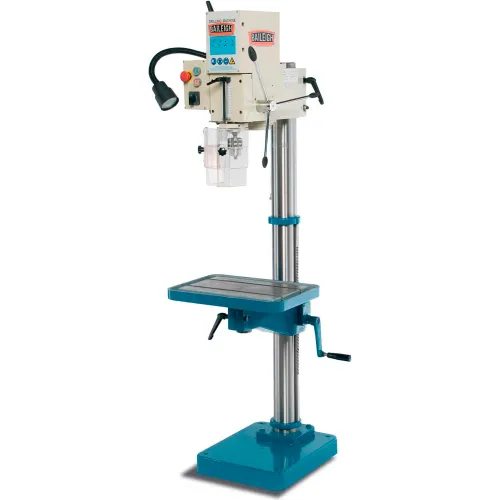

Baileigh Industrial Gear Driven Drill Press, 1.5 HP, Single Phase, 110V, DP-1000G
Write a Review
|
Questions & Answers (0)
Product Description
Equipped to run at 4 different speeds, the gear-driven metal drill press is as versatile as it is tough. For an economical price, you can add this drill—built to Baileigh's exacting quality standards—to your shop.
PRICE
$6,079.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Tapping Capacity Mild Steel | 5/8 in |
| Size | 24 x 36 x 80 in |
| Spindle Travel | 5.3 in |
| Base Work Table | 15.5 x 19.5 in |
| Base Dimensions | 15.5 x 19.5 in |
| Drills to Center of Circle | 20 in |
| Quill Travel | 5.3 in |
| Quill Diameter | 3 in |
| Table Size (L x W) | 19.75 x 13.75 in |
| Swing | 18 in |
| Belt Table Size (L x W) | 19.75 x 13.75 in |
| T-Slots Number And Size | 2@ 0.625 in |
| Taper | MT3 |
| Distance Spindle To Column | 20 in |
Product Details
| Drilling Capacity Mild Steel | 1" |
| Motor Voltage | 110 V |
| Phase | 1 |
| Manufacturers Part Number | BA9-1002827 |
| Motor Horsepower | 1-1/2 HP |
| Spindle Taper | MT3 |
| Brand | Baileigh Industrial |
| Drilling Capacity Cast Iron | 1-1/4" |
| Number of Spindle Speeds | 4 |
| Style | Floor Drill Press |
| Country of Origin | Import |
| Range of Spindle Speeds | 125, 420, 535, 1740 rpm |
