- .5 hp motor requires 110 volt power and will work at any shop or site.
- Belt driven headdrills a maximum capacity of 5/8" steel.
- 5 speeds in the range from 250 to 2900 rpm to suit your application.
- 2-7/8" steel column eliminates flexing even when drilling at full capacity.
- Rigid cast iron base and table add strength to the drill's structure.
- Includes a safety shield around the drill head to protect you.
- Baileigh backs this drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team.

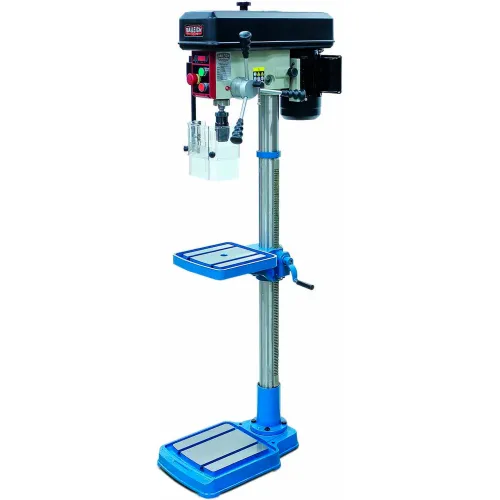

Baileigh Industrial Drill Press, 0.5 HP, Single Phase, 110V, DP-0625E
Write a Review
|
Questions & Answers (0)
Product Description
This economical belt driven drill press runs smoothly even at full capacity -this 14" drill press lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helpsextend tooling life.
PRICE
$1,855.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Size | 24 x 36 x 48 in |
| Max Distance Spindle to Table | 6 Min to 36 Max in |
| Spindle Travel | 3.14 in |
| Base Work Table | 25-3/4 x 16-1/2 in |
| Base Dimensions | 25-3/4 x 16-1/2 in |
| Drills to Center of Circle | 14 in |
| Quill Travel | 3.14 in |
| Quill Diameter | 1.75 in |
| Table Size (L x W) | 11 x 11 in |
| Swing | 14 in |
| Belt Table Size (L x W) | 11 x 11 in |
| Column Diameter | 2-7/8 in |
| T-Slots Number And Size | 2 @ .5 in |
| Taper | B16 |
| Max Spindle Distance to Table | 35.43 in |
| Spindle Distance To Base | 47.63 in |
| Distance Spindle To Column | 48 in |
Product Details
| Belt Table Tilt Degrees | 360 ° ° |
| Drilling Capacity Mild Steel | 5/8" |
| Motor Voltage | 110 V |
| Phase | 1 |
| Manufacturers Part Number | BA9-1022127 |
| Motor Horsepower | 1/2 HP |
| Spindle Taper | B16 |
| Brand | Baileigh Industrial |
| Drilling Capacity Cast Iron | 3/4" |
| Number of Spindle Speeds | 5 |
| Style | Floor Drill Press |
| Country of Origin | Import |
| Includes | B-16 1-16mm Keyless Chuck |
| Range of Spindle Speeds | 250 to 2900 rpm |
