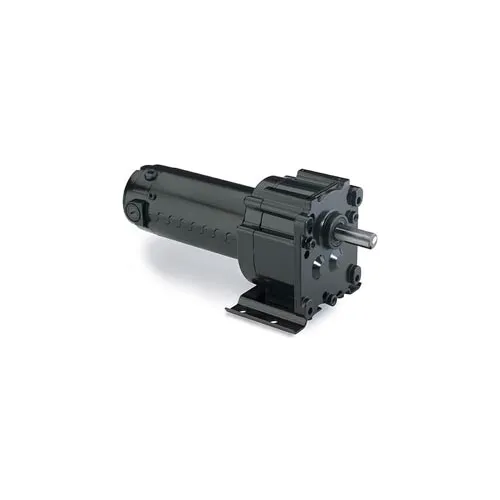

Leeson M1125220.00, 1/8 HP, 61 RPM, 12VDC, TENV, P300, 29:1 Ratio, 113 In-Lbs

DC Gearmotor with Parallel Shaft. 1/4HP, 125 RPM, Gear Ratio 23 to 1, Overhung Load 256 Pounds, 100 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 34 Frame, 90V, Name Plate Amps 2. Gearmotor is totally enclosed, permanent magnet DC, performance matched for continuous duty service. Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support and precision machined gearing, hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload of 200%. Features oversized ...

DC Gearmotor with Right-Angle Shaft. 1/4HP, 250 RPM, Gear Ratio 10 to 1, Overhung Load 235 Pounds, 50 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 34 Frame, 90V, Name Plate Amps 2.3. Worm-type right-angle gearing features hardened,steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are use and gearbox has all ball bearings. The housing is sealed and lubrication is permanent with an oil bath. The output shaft is field interchangeable from left hand style to right hand style by reassembly. For optimum seal ...

DC Gearmotor with Parallel Shaft. 1/4HP, 250 RPM, Gear Ratio 10 to 1, Overhung Load 201 Pounds, 45 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 34 Frame, 90V, Name Plate Amps 2. Gearmotor is totally enclosed, permanent magnet DC, performance matched for continuous duty service. Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support and precision machined gearing, hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload of 200%. Features oversized ...

AC Gearmotor with Parallel Shaft. 1/15HP, 97 RPM, Gear Ratio 16.5 to 1, Overhung Load 232 Pounds, 43 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 38 Frame, 115/230V, 1PH, Name Plate Amps 1. Single phase gearmotors are totally enclosed for continuous duty, general purpose applications. Permanent split capacitor designs are rated for 115/230VAC, 60/50 Hertz input, and have starting torques equal to the running torques. The in-line gearing is of precision machined steel, with first stage steel helical gear followed by spur type gears. Lubrication is by ...

DC Gearmotor with Parallel Shaft. 1/4HP, 165 RPM, Gear Ratio 15 to 1, Overhung Load 232 Pounds, 70 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 34 Frame, 90V, Name Plate Amps 2. Gearmotor is totally enclosed, permanent magnet DC, performance matched for continuous duty service. Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support and precision machined gearing, hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload of 200%. Features oversized ...
