Hessaire

Model # :WBB2201931

MPN #: 48D750T-N

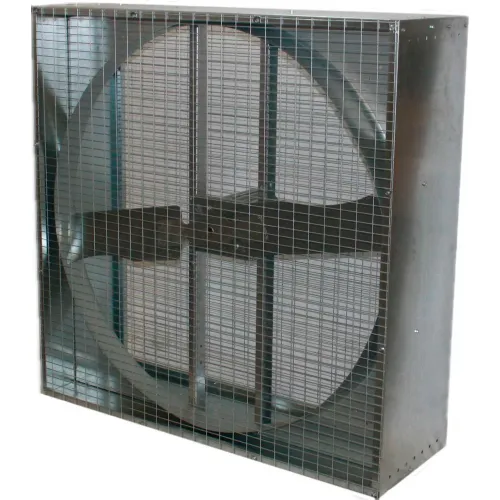

Hessaire 48" Direct Drive Box Fan 48D750T-N, 1HP, 3PH, 19001 CFM

Product Description
Hessaire incorporates industry leading fan, motor and blade design capabilities in all air movement products. Hessaire's galvanized box fan line features heavy gauge G90 galvanized components for long life and harsh environments, heavy gauge galvanized wire guards, and sealed ball bearing ag duty motors. Industrial grade fan blades are matched with the motors for maximum efficiencies, airflow and motor life. Each box fan includes a hanging bracket as well as eyebolt holes in the cabinets for hanging options. For models with discharge shutters, shutters feature heavy gauge extruded aluminum components. Louvers are counterbalanced for optimum performance.

PRICE
$979.00

1
1
Ships in 14 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length52-1/8 in
Width17 in
Height52-1/8 in
Weight130 lbs
Fan Diameter48 in
Discharge HeadScreen ft

Product Details

RPM825 rpm
CFM19001 CFM
Horsepower1 HP
ColorSilver
Number of Speeds1
Amperage4.60 A
Drive TypeDirect Drive
Hertz60 Hz
Voltage208 / 230 / 460 V
CFM High19001 CFM
MaterialGalvanized Steel
Phase3
Manufacturers Part Number48D750T-N
Indoor/OutdoorIndoor
BrandHessaire

Warranty

Warranty2 yr
