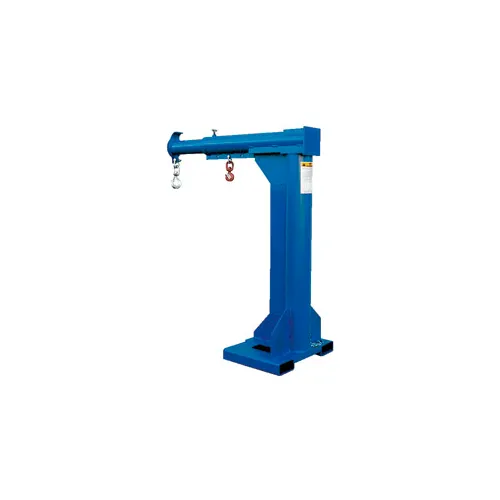

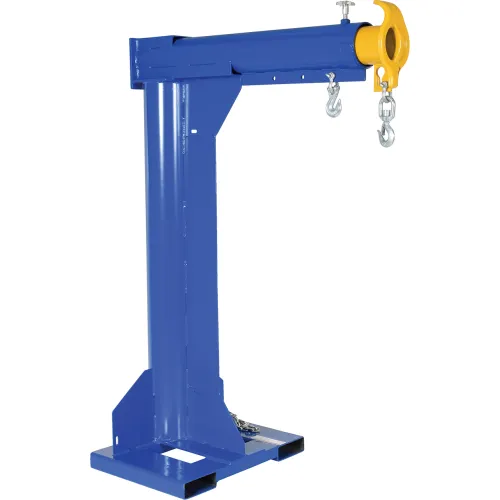

High-Rise Telescopic Jib Boom Crane, 24" Centers, 6000 Lbs. Capacity

Perfect for when job includes high and hard to reach objects. Quickly and easily convert your forklift into a mobile pivoting boom lift. Telescoping boom adjusts from 84" to 147" horizontally in 7-1/2" increments and adjusts vertically five elevations up to 37 degrees (99-1/2") above horizontal. Features 3' restraining chain with grab hook, swivel hooks with safety latches, ten alternate hook positions and a boom locking T-pin. Maximum Load on a Single Hook: At 36" Hook Position = 6000 lbs. At 60" Hook Position = 4500 lbs. At 84" Hook Position = 3500 lbs. At 99" Hook Position = 2900 lbs. ...

Contrx pivoting jib boom can convert your forklift truck into a mobile crane inexpensively. Move cumbersome items your forks cannot reach. Jib reaches out and picks from overhead, through or over obstructions. One man can install in minutes, Jib lift slips onto forks and is anchored to truck via 48" safety chain with grab hook. Heavy duty structural steel tube construction with safety latched swivel hooks. Safety pin locks boom into one of nine positions, spaced 7-1/2" apart. Made in USA. Features 9 Hook positions, a 24"L Base and a 19-1/2" Height under beam. NOTE: OSHA requires ...

Converts your forklift instantly to a jib boom crane. Simply slip forks of your counter-balanced lift truck into fork pockets of jib boom and attach 36"L safety chain to truck mast. Maximum Load on a Single Hook: At 36" Hook Position = 6000 lbs. At 144" Hook Position = 1800 lbs. - 151-1/4" Fully Extended; 86-1/4" Fully Retracted - Safety chain welded to boom has grab hook for anchoring jib boom to truck - Two hoisting hooks (one swivel, one rigid) - Adjustable locking screw secures boom in any position - 4 intermediate supports points under boom on 12" centers add support for long loads - ...

This Floor Mounted Jib adapts well to several applications. Full 360° rotation allows personnel to completely utilize their workstation. Solid steel construction will assist workers in lifting awkward material. The overall I-beam length is 80" with a usable length of 70". Requires reinforced concrete pad for installation. 300 lbs capacity.

Wall JibThis Wall Jibs is designed to assist workers in the maneuvering of materials as well as achieving maximum headroom where low ceilings are of concern. The cantilever style jib crane mounts to true vertical wall members. Increases personnel productivity by lifting awkward materials. The overall I-beam length is 92" with a usable length of 80". Hoist and trolley can be ordered separately. 600 lbs capacity.
