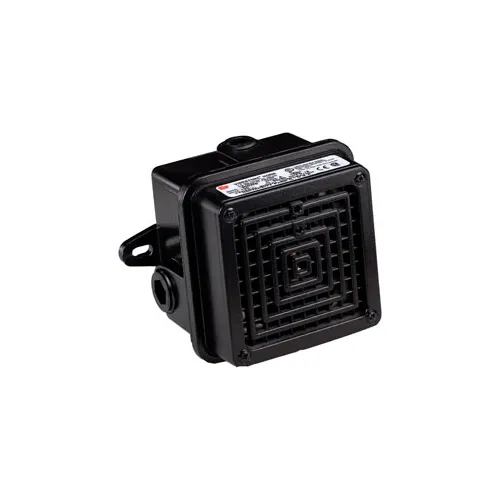

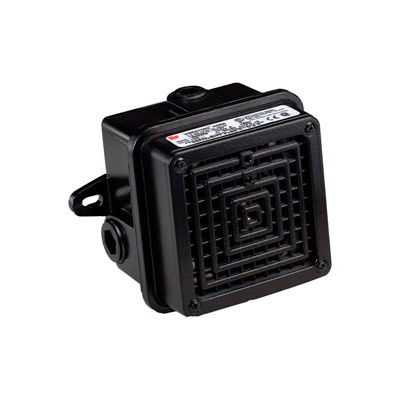

Federal Signal 350WBX-120 120VAC, Hazardous Location Horn, Weatherproof Backbox
Model 350WBX (AC current) Vibratone® horn produces sound by the electro-mechanical vibration of a stainless steel diaphragm. The horn mechanism with diaphragm is attached to the grille. The water- and dust-tight backbox is ideal for indoor or outdoor use. The Model 350WBX is available in 120 or 240VAC for 50/60Hz. Its sound output level is 100dBa nominal at ten feet (110dBa @ 1 meter). This hazardous location horn accommodates surface, flush or semi-flush mounting on walls, panels, and in cabinets. The Model 350WBX features a die-cast zinc housing with a corrosion-resistant polyurethane finish. The rugged outer grille resists vandalism without reducing sound output. The 350WBX is fused and utilizes a terminal block connection. The 350WBX is approved for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III. Capable of producing coded blasts or sustained tones, Federal Signal's Vibratone horns are excellent for general alarm, start/dismissal, coded paging and process control signaling in areas where their sound output exceeds ambient noise levels. Compact size and a variety of installation options make them ideal for institutional use. UL and cUL Listed, CSA Certified. 5 Year Limited Warranty.
Model 350WBX (AC current) Vibratone® horn produces sound by the electro-mechanical vibration of a stainless steel diaphragm. The horn mechanism with diaphragm is attached to the grille. The water- and dust-tight backbox is ideal for indoor or outdoor use. The Model 350WBX is available in 120 or 240VAC for 50/60Hz. Its sound output level is 100dBa nominal at ten feet (110dBa @ 1 meter). This hazardous location horn accommodates surface, flush or semi-flush mounting on walls, panels, and in cabinets. The Model 350WBX features a die-cast zinc housing with a corrosion-resistant polyurethane finish. The rugged outer grille resists vandalism without reducing sound output. The 350WBX is fused and utilizes a terminal block connection. The 350WBX is approved for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III. Capable of producing coded blasts or sustained tones, Federal Signal's Vibratone horns are excellent for general alarm, start/dismissal, coded paging and process control signaling in areas where their sound output exceeds ambient noise levels. Compact size and a variety of installation options make them ideal for institutional use. UL and cUL Listed, CSA Certified. 5 Year Limited Warranty.
Weights & Dimensions
- Depth 3-2/3 in
- Width 6 in
- Height 4-1/2 in
- Weight 2.7 lbs
Product Details
- Made in the USA Yes
- Operating Temperature -65F to 150F
- Voltage 120 V
- Mounting Location Surface (Hazardous)
- LED Color Family Gray
- Operating Current 0.18 A
- Brand Federal Signal
- Package Quantity 1
- Decibels 100
- Manufacturers Part Number 350WBX-120
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Anonymous
Date: September 19, 2018
Product Q & A
There are no questions for this product.

Federal Signal 350WBX-120 120VAC, Hazardous Location Horn, Weatherproof Backbox
$319.95
