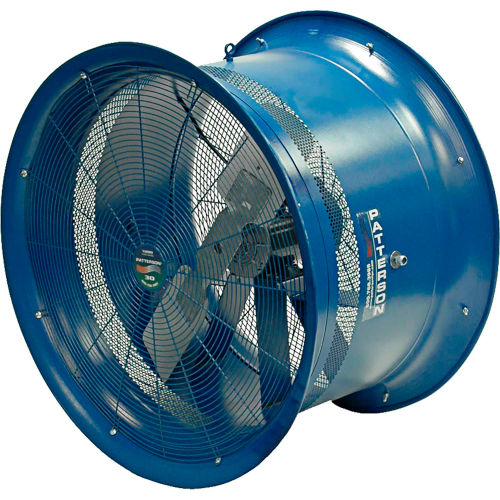

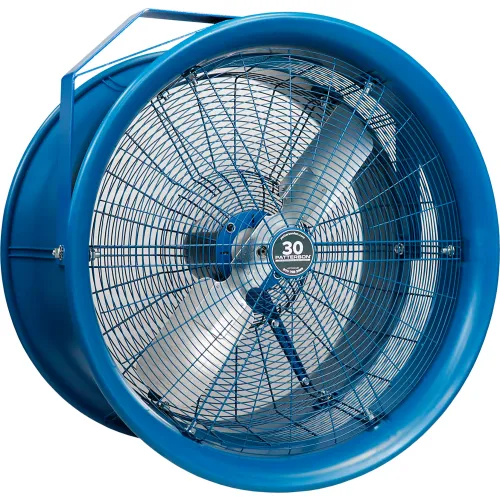

Patterson Fan 30" Industrial Drum Fan W/ Yoke Mount, 12000 CFM, 1 HP, 115V, Single Phase

Patterson Fan 30" Industrial Drum Fan W/ Yoke Mount, 12000 CFM, 1 HP, 115V, Single Phase

Item #: WBB1922655

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • 115
  • 230 / 460

115

  • 1
  • 3

1

Price: $1,250.00

$208.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Patterson's 26" high velocity fan with air throw of 150 feet indoors, used for personnel, process, equipment cooling as well as general air circulation, industrial use only. Built for performance, superior distance of air throw and durability.

Key attributes of the HV Series:
  • Direct drive, maintenance-free motor with Sealed bearings (Totally Enclosed)
  • Side-vented barrel design promotes optimum air flow
  • Fan blades engineered for maximum air velocity and efficiently smooth operation
  • Powder coated, corrosion Resistant OSHA compliant recessed finger guards
  • Deep venturi inlet/ outlet design of barrel creates even column of non-disturbed air flow
  • Limited warranty of 2 years


Note:This is an industrial product, it was not designed for and is not intended for residential use. Orders for residential use will not be accepted.

  • BRAND Patterson Fan
  • ASSEMBLY Assembled
  • CFM HIGH 12,000
  • WIDTH INCHES 37
  • HEIGHT INCHES 37
  • DEPTH INCHES 22
  • FAN DIAMETER INCHES 30
  • WEIGHT LBS 96
  • MANUFACTURER'S PART NUMBER H30A
  • COLOR FINISH Blue
  • CONSTRUCTION Steel
  • HORSEPOWER 1
  • FAN TYPE Industrial
  • RPM HIGH 1,725
  • WATTS 1,541
  • PHASE 1
  • AMPS 13.4
  • HERTZ (HZ) 60
  • VOLTAGE 115
  • SPEEDS 1
  • MOTOR TYPE Totally Enclosed Air Over (TEAO)
  • DRIVE TYPE Direct Drive
  • DECIBELS (DBA) 82.2
  • OSCILLATING/NON-OSCILLATING Non-Oscillating
  • LIMITED WARRANTY YEARS 2
  • APPROVALS OR CERTIFICATIONS OSHA Compliant
  • DESCRIPTION Industrial Drum Fan
  • TYPE Drum / Blower Fan
  • INCLUDES Yoke Mount Bracket
  • MOUNT TYPE Wall / Column / Pedestal
  • POWER CORD TYPE SJT 3 Conductor
  • POWER CORD LENGTH FEET 12
  • MAX AMBIENT TEMPERATURE °F 104
  • BLADE TYPE Galvanized Aluminum
  • BLADE QUANTITY 2
  • PACKAGE QUANTITY 1
  • DISTANCE AIR THROW FEET 200'
  • MODEL B1922655
  • COOLING SQ. FT. 12,000
