Fantech Exterior Wall Mount 4" Centrifugal Duct Fan RVF4, 115V, 124 CFM

Fantech Exterior Wall Mount 4" Centrifugal Duct Fan RVF4, 115V, 124 CFM

Item #: WBB2146440

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $178.79

Save $8.94 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Fantech Exterior Wall Mount 4" Centrifugal Duct Fan RVF4, 115V, 124 CFM

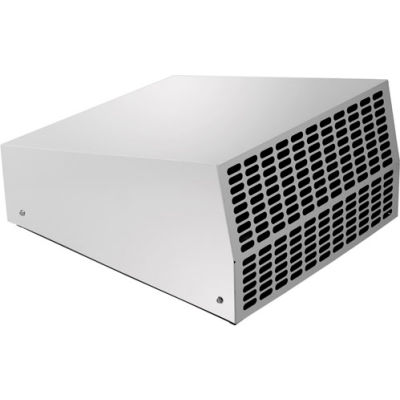

The RVF models are exhaust-air fans for installation on external walls. The unit consists of an impeller with backward-curved blades and a casing in galvanized sheet steel with a white powder-paint coating. When installed on an exterior wall, all ambient noise is kept outside. Get Connected With Ease. These fans are lightweight, compact, and simple to install. No installation extras are required. Just mount the fan to the wall and connect the electrical supply to the conveniently located terminal box. The housing is removable for immediate access to the motor and wiring connections.

Features:
  • Galvanized steel housing features powder-coat finish
  • External rotor motor with totally enclosed design allows fans to operate in high moisture, lint and dust laden air
  • Permanent split capacitor motors feature automatic reset thermal overload protection and sealed ball bearings for long life and maintenance-free operation
  • All motors and impellers are designed as one integral unit, allowing for excellent motor heat dissipation, even at low RPM
  • Permanently lubricated sealed ball bearings
  • Five-year factory warranty
  • Energy Star, HVI certified, cSAus, cULus

Product Specifications

  • AMPS0.49
  • BRANDFantech®
  • CERTIFICATIONSHVI, cULus, cCSAus, Energy Star
  • CFM HIGH136
  • COLOR FINISHTan
  • CONSTRUCTIONAluminum
  • DESCRIPTIONExterior Wall Mount Centrifugal Duct Fan
  • DUCT SIZE INCHES4
  • HEIGHT INCHES13
  • HERTZ (HZ)60
  • INLET/OUTLET DIAMETER INCHES4
  • LENGTH INCHES10-1/4
  • LIMITED WARRANTY YEARS5
  • MANUFACTURER PART NUMBERRVF4
  • MANUFACTURERS PART NUMBERRVF4
  • MODEL40040
  • MOTOR TYPEERM
  • PHASE1
  • RPM HIGH3,084
  • SPEED CONTROLLABLEN
  • VOLTAGE115
  • WATTS17.7
  • WEIGHT LBS8
  • WIDTH INCHES6
