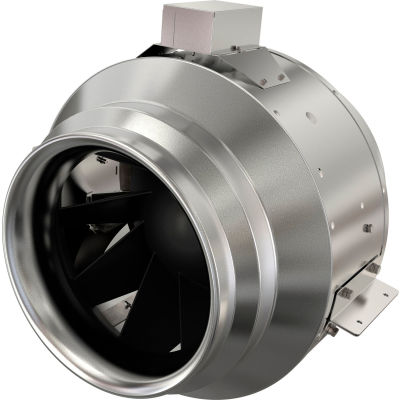

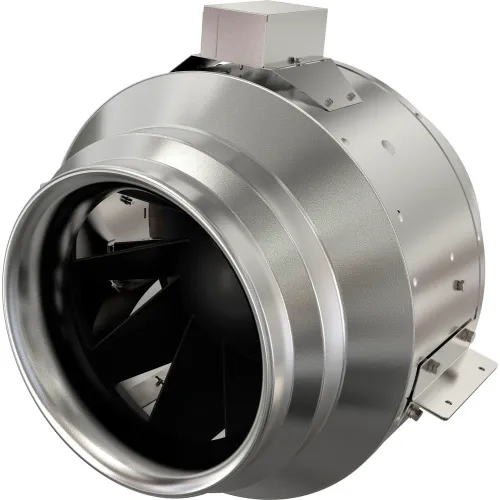

Fantech Inline Mixed Flow 16" Duct Fan FKD 16, 115V, 2952 CFM

Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust. FKD straight-through inline design fans are available in a wide range of sizes for easy installation in duct sizes from 8" to 20". Fans can be mounted at any angle at any point along the duct work. Motors are capable of operating in airstream temperatures up to 140° F. Motor bearings are permanently sealed, self lubricating ball type.

Features:
  • Mixed flow impeller
  • 100% speed controllable
  • Can be installed in any position
  • External rotor motor
  • Galvanized steel housing
  • Three-year warranty
  • Certified by AMCA Air, AMCA Sound and cULus

Product Details

  • Number of Speeds Variable
  • Amperage 6.50 A
  • For Use With RPE10, WC15
  • Drive Type Direct
  • Material Galvanized Steel
  • RPM High 1,600 rpm
  • Voltage 115 V
  • Description Inline Mixed Flow Duct Fan
  • Speed Controllable Y
  • CFM High 2952 CFM
  • Motor Type ERM
  • Phase 1
  • Watts 678 W
  • Brand Fantech
  • Warranty 3 yr
  • Hertz 60 Hz
  • Manufacturers Part Number FKD 16
  • Color Family Silver
  • Sones 18.53

Weights & Dimensions

  • Width 19-3/4 in
  • Duct Size 16 in
  • Length 18-3/4 in
  • Height 18-3/4 in
  • Weight 54 lbs

Compliance & Certifications

  • Certifications AMCA Air, AMCA Sound, cULus
