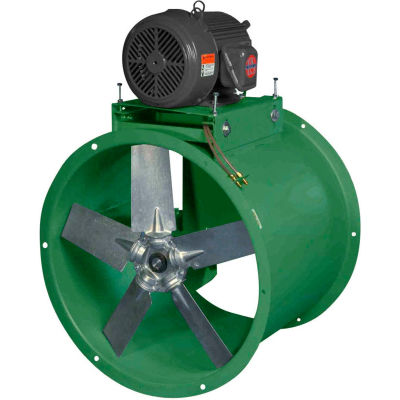

Canarm 24" Single Phase Belt Drive Tube Axial Duct Fan WTA24T10300 3HP, 10800 CFM

Rollover image to zoom in

Click image to enlarge

See all 82 items in product family

Canarm 24" Single Phase Belt Drive Tube Axial Duct Fan WTA24T10300 3HP, 10800 CFM

Item #: WBB1659507

Sold By: globalindustrial.com

Usually ships in 25 to 28 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 2,445.00
Product Information
Customer Review
Product Q&A
Canarm 24" Single Phase Belt Drive Tube Axial Duct Fan WTA24T10300 3HP, 10800 CFM

Designed for duct connected applications such as paint booth exhaust, air make-up fans or general exhaust. The WTA series includes an adjustable motor base, heavy duty pillow block ball bearings with moisture displacement collars, extended lube lines with external grease fittings. TEFC motors are standard and models up to 42" come with cast aluminum blades. 48", 54" and 60" models have polypropylene reinforced fiberglass blades. WTA models are ideally suited for applications involving moisture laden air with a maximum temperature of 200F.

Features:
  • Adjustable motor base
  • Heavy duty pillow block bearings w/ moisture displacement collars
  • Cast aluminum blades

Product Specifications

    • BLADE QUANTITY5
    • BLOWER TYPETube Axial Duct Fan
    • BRANDCanarm
    • CFM HIGH10,800
    • CFM LOW6,510
    • CLASSD
    • COLORGreen
    • CONSTRUCTIONHeavy guage welded steel
    • DECIBELS (DBA)72
    • DEPTH INCHES21
    • DESCRIPTION24" Single Phase Belt Drive Tube Axial Duct Fan
    • FAN DIAMETER INCHES24
    • FINISHPowder Coat
    • HEIGHT INCHES27-3/8
    • HERTZ (HZ)60
    • HORSEPOWER3
    • INSIDE DIMENSIONS INCHES24-3/8
    • MANUFACTURER PART NUMBERWTA24T10300
    • MANUFACTURER WARRANTY1 Year
    • MODELWTA
    • MOUNTING LOCATIONInline Duct
    • OVERALL HEIGHT INCHES32
    • OVERALL WIDTH INCHES32
    • PHASE1
    • RPM HIGH1,890
    • TYPEFor Moisture Laden Air W/ A Max. Temp. Of 200F
    • VOLTAGE115
    • WIDTH INCHES27-3/8
