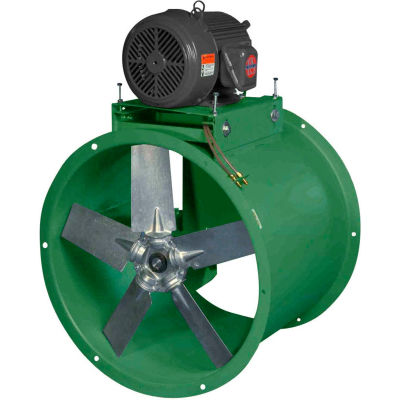

Canarm 36" Three Phase Belt Drive Tube Axial Duct Fan BTA36T30750M 7-1/2HP, 27930 CFM

Rollover image to zoom in

Click image to enlarge

See all 93 items in product family

Canarm 36" Three Phase Belt Drive Tube Axial Duct Fan BTA36T30750M 7-1/2HP, 27930 CFM

Item #: WBB1659555

Sold By: globalindustrial.com

Usually ships in 25 to 28 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 2,720.00
Product Information
Customer Review
Product Q&A
Canarm 36" Three Phase Belt Drive Tube Axial Duct Fan BTA36T30750M 7-1/2HP, 27930 CFM

Designed for duct connected applications such as paint booth exhaust, air make-up fans or general exhaust. The BTA series includes an adjustable motor base, heavy duty pillow block ball bearings with high temperature grease, extended lube lines with external grease fittings. TEFC motors are standard and models up to 42" come with cast aluminum blades. 48", 54" and 60" models have polypropylene reinforced fiberglass blades. BTA models are ideally suited for applications involving clean, dry air with a maximum temperature of 200F.

Features:
  • Adjustable motor base
  • Heavy duty pillow block ball bearings w/ high temp. grease
  • Cast aluminum blades

Product Specifications

    • BLADE QUANTITY6
    • BLOWER TYPETube Axial Duct Fan
    • BRANDCanarm
    • CFM HIGH27,930
    • CFM LOW15,290
    • CLASSD
    • COLORGreen
    • CONSTRUCTIONHeavy guage welded steel
    • DECIBELS (DBA)75
    • DEPTH INCHES27
    • DESCRIPTION36" Three Phase Belt Drive Tube Axial Duct Fan
    • FAN DIAMETER INCHES36
    • FINISHPowder Coat
    • HEIGHT INCHES39-3/8
    • HERTZ (HZ)60
    • HORSEPOWER7-1/2
    • INSIDE DIMENSIONS INCHES36-3/8
    • MANUFACTURER PART NUMBERBTA36T30750M
    • MANUFACTURER WARRANTY1 Year
    • MODELBTA
    • MOUNTING LOCATIONInline Duct
    • OVERALL HEIGHT INCHES44
    • OVERALL WIDTH INCHES44
    • PHASE3
    • RPM HIGH1,425
    • TYPEFor Clean, Dry Air W/ A Max. Temp. Of 200F
    • VOLTAGE208-230 / 460
    • WIDTH INCHES39-3/8
