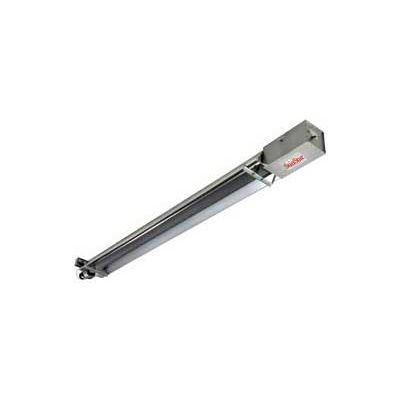

SunStar Natural Gas Infrared Heater Straight Tube Vacuum - SIS75-20-N5 - 75000 BTU

SunStar Natural Gas Infrared Heater Straight Tube Vacuum - SIS75-20-N5 - 75000 BTU

Item #: WBB200336

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $926.00

$154.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $926.00 or save 5% on purchase.

Quantity

Customers Also Viewed

VACUUM SYSTEM GAS TUBE HEATERS
Straight Tube - Natural Gas Infrared Heater
Offers fuel savings up to 70%. Straight Tube heaters provide heat for an entire building. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50' of ducting in fresh air and 75' sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA.

Note: Installation and service must be performed by a licensed contractor and must conform to local codes. In absence of local codes, installation must comply with National Fuel Gas Code ANSI X223.I (also known as NFPA 54) or CGA B149 installation codes.

To help pick out the heater that's right for you, click here to view the Heat Loss Estimating Chart.

Product Specifications

  • BRANDSunStar®
  • LENGTH FEET22-3/4
  • WIDTH INCHES13
  • HEIGHT INCHES6-1/4
  • DUCT SIZE INCHES4
  • MIN. CLEARANCE COMBUSTIBLE AT 45 DEGREE ANGLE INCHFront 48, Rear 12 Ceiling 6, Below 60, End 30
  • MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCHSide 27, Ceiling 6, Below 60, End 30
  • MINIMUM MOUNTING HEIGHT FEET13
  • CONSTRUCTIONCast Iron Burner / Aluminum Reflectors
  • MANUFACTURERS PART NUMBERSIS75-20-N5
  • BTU HIGH75000
  • VOLTAGE120
  • GAS INLET PRESSURE MAX. WATER COLUMN INCHES14
  • GAS INLET PRESSURE MIN. WATER COLUMN INCHES5
  • SHAPEStraight
  • FUEL TYPENatural Gas
  • IGNITION TYPEDirect Spark
  • DESCRIPTIONStandard
  • TYPEStraight Tube
  • LIMITED WARRANTY YEARS1
  • AMPS HIGH2.4
  • TUBE LENGTH FEET20
  • MIN. MOUNTING HEIGHT FEET AT HORIZONTAL13
  • MIN. MOUNTING HEIGHT FEET AT 45 DEGREE ANGLE12
  • BURNER PRESSURE W.C. INCHES3-1/2
Customer Review

4.0

  • 5 Star

    0
  • 4 Star

    1
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: March 12, 2012

    75000 btu infrared tube heater
    Your review:
    Simple to install, just a few parts to assemble. If one can read and follow directions this is a easy task.
Product Q & A

There are no questions for this product.

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
