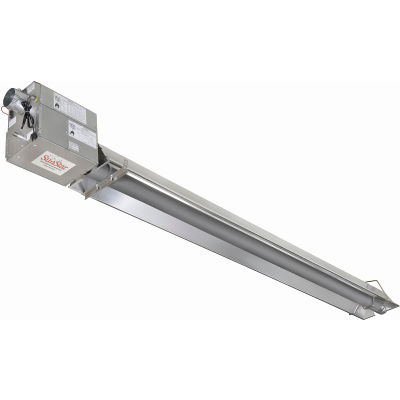

SunStar Propane Infrared Heater Straight Tube Positive Pressure - SPS200-50-L5 - 200000 BTU

SunStar Propane Infrared Heater Straight Tube Positive Pressure - SPS200-50-L5 - 200000 BTU

Item #: WBB59959

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,444.00

$240.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Offers fuel savings up to 50%.

Straight Tube heaters ideal for complete building heating. Positive pressure system pressurizes the combustion chamber. All gas and electrical connection at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40' of ducting in fresh air or 40' sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise ( less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. The minimum mounting heights are shown for human comfort and uniform energy distribution for complete building applications. Mount heaters as high as possible. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA.

To help pick out the heater that's right for you, click here to view the Heat Loss Estimating Chart.

Product Specifications

  • BRANDSunStar
  • LENGTH FEET52
  • WIDTH INCHES13
  • HEIGHT INCHES6-1/4
  • DUCT SIZE INCHES4
  • MIN. CLEARANCE COMBUSTIBLE AT 45 DEGREE ANGLE INCHFront 84, Rear 24, Ceiling 6, Below 106, End 48
  • MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCHSide 84, Ceiling 6, Below 106, End 48
  • WEIGHT LBS190.4
  • CONSTRUCTIONCast Iron Burner / Aluminum Reflectors
  • MANUFACTURER PART#SPS200-50-L5
  • TUBE CONSTRUCTIONHot Rolled Steel
  • BTU HIGH200000
  • GAS INLET PRESSURE MAX. WATER COLUMN INCHES14
  • GAS INLET PRESSURE MIN. WATER COLUMN INCHES11
  • SHAPEStraight
  • FUEL TYPEPropane
  • IGNITION TYPEDirect Spark
  • DESCRIPTIONStandard
  • TYPEPositive Pressure
  • LIMITED WARRANTY YEARS1
  • MIN. MOUNTING HEIGHT FEET AT HORIZONTAL18
  • MIN. MOUNTING HEIGHT FEET AT 45 DEGREE ANGLE16
  • BURNER PRESSURE W.C. INCHES10
  • TUBE LENGTH FEET50
