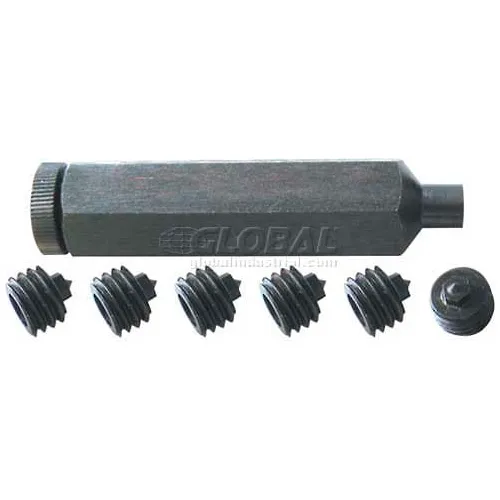

For transferring the exact location of open and blind threaded holes to mating parts. While primarily designed for diemakers it has many other applications - locating fixtures, air cylinders, chucks, repairs etc. Set consists of 6 hardened screws nested in a combined holder and wrench. Each set is a complete tool; no wrenches or pliers are necessary.
Share
Spec Sheet
Model # :WBB912246
MPN #: 5743213
Import 1/2-13 Transfer Screw Set
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$16.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Size | 1/2-13 |
Product Details
| Type | Transfer Screw Set |
