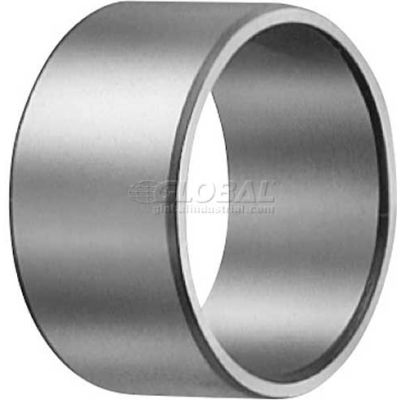

IKO Inner Ring for Shell Type Needle Roller Bearing INCH, 1" Bore, 1-1/4 OD, 19.43 mmWidth, Part# IRB1612
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
Weights & Dimensions
- Outside Dimension Tolerance +0 / -0.013 mm
- Bore (D) 25.400 (1) in
- Bore Tolerance +0 / -0.013
- Width (B) 19.43
- Width Tolerance +0 / -0.250
- Min Inner Ring Corner Radius 0.6 in
Product Details
- Outside Dimension (F) 31.750 (1-1/4)
- Description Inner Ring for Shell Type Needle Roller Bearing - INCH
- Shaft Shoulder (da) Min 30 mm
- Shaft Shoulder (da) Max 30.7 mm
- Brand IKO
- Manufacturers Part Number IRB1612
- Appropriate Outer Ring BA2012ZOH, BHA2012ZOH, YB2012
Customer Review
Product Q & A
There are no questions for this product.

IKO Inner Ring for Shell Type Needle Roller Bearing INCH, 1" Bore, 1-1/4 OD, 19.43 mmWidth
$10.5
