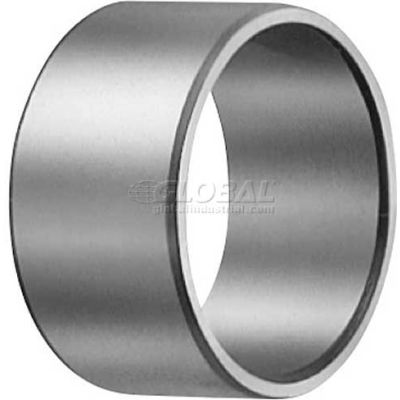

IKO Inner Ring for Shell Type Needle Roller Bearing INCH, 3/8 Bore, 9/16 OD, 19.43mm Width, Part# IRB612
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
Weights & Dimensions
- Outside Dimension Tolerance +0 / -0.013 mm
- Bore (D) 9.525 (3/8) in
- Bore Tolerance +0 / -0.013
- Width (B) 19.43
- Width Tolerance +0 / -0.250
- Min Inner Ring Corner Radius 0.3 in
Product Details
- Outside Dimension (F) 14.288 (9/16)
- Description Inner Ring for Shell Type Needle Roller Bearing - INCH
- Shaft Shoulder (da) Min 12.8 mm
- Shaft Shoulder (da) Max 13.2 mm
- Brand IKO
- Manufacturers Part Number IRB612
- Appropriate Outer Ring BA912ZOH, YB912
Customer Review
Product Q & A
There are no questions for this product.

IKO Inner Ring for Shell Type Needle Roller Bearing INCH, 3/8 Bore, 9/16 OD, 19.43mm Width
$7.4
