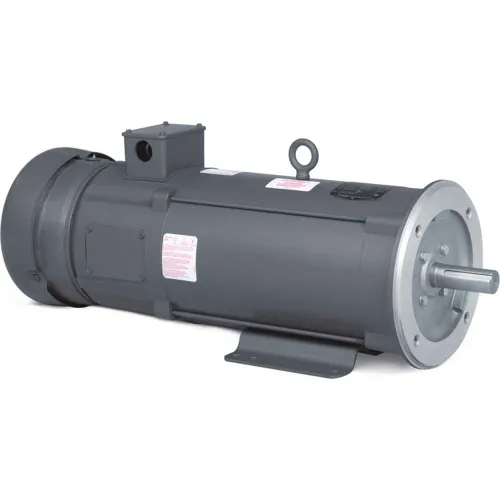

Baldor-Reliance Intergral Tach DC Motor, CDPT3603, 3 HP, 1750 RPM, TEFC, 182ATC Frame

Actual product may differ from image shown

Baldor-Reliance Intergral Tach DC Motor, CDPT3603, 3 HP, 1750 RPM, TEFC, 182ATC Frame

Item #: WBB910223

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$4,736.00 up to 26% OFF

Price: $3,481.00

$580.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Intergral Tach DC Motor, CDPT3603, 3 HP, 1750 RPM, TEFC, 182ATC Frame

Baldor-Reliance has designed a Permanent Magnet DC Motor with an integral 50 VDC per 1000 RPM precision tachometer. Its compact design fits into many locations where a conventional motor won't fit. Plus it is less costly than buying the motor, tach kit and tachometer. Applications include precision metering pumps and tensioning.

Features
  • Provides an integral 50 VDC per 1000 RPM precision tachometer for closed loop drive system
  • Class F insulation
  • 20:1 constant torque speed range with NEMA Type control
  • 3300P motors TENV, all others are TEFC
Application(s)
  • Conveyors and metering pumps where precise speed regulation is required.

  • HORSEPOWER 3
  • ENCLOSURE TEFC
  • BRAND Baldor-Reliance
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1750
  • RPM 1750
  • VOLTAGE 50
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6206
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • ARMATURE VOLTAGE 180
  • FRAME SIZE 182ATC
  • FIELD VOLTAGE 180
  • TYPE Intergral Tach DC Motor
  • FL AMPS 14
  • SPECIFICATION NUMBER 36P130Z507
  • BALDOR CATALOG NUMBER CDPT3603
  • DRIVE END BEARING SIZE 6206
