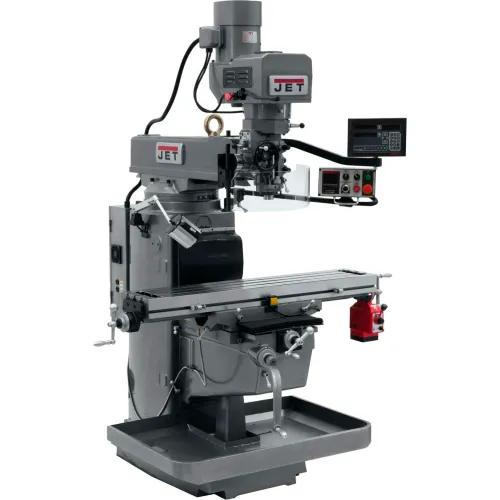

Constructed using the Meehanite® casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty
Features:
- JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
- Swing away control box houses an e-stop and puts all controls at the operators fingertips
- The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
- Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
- For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
- The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
- CSA/CUS Certified
- Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
- Spindle head is internally cooled extending bearing, belt and motor life
- Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
- The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
- Swing away safety shield
- LED work lamp
- Chip pan
- Dual locks on all moveable surfaces
- Way covers
- Drawbar
- Tool box with tools
- Digital Readout: Newall Dp700
- Number Of Axis: 3 (Knee)
- Powerfeed: X-Axis
- Spindle Taper (In. x TPI): R-8
- Table Size (L x W): 10" x 50"
- Quill Diameter: 3-3/8"
- Number Of Spindle Speeds: Variable
- Range Of Spindle Speeds (RPM): 60 - 4,500
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Spindle Travel: 5"
- Head Movement: 90°R & L 45° F & B
- Max Distance Spindle To Table: 20-3/4"
- Distance Spindle To Column (Max.): 26-3/4"
- Distance Spindle To Column (Min.): 4-3/4"
- Collet Capacity: 1/8 - 7/8
- Table Longitudinal Travel: 35-1/3"
- Table Longitudinal Travel With Powerfeed: 29-7/8"
- Table Cross Travel: 14-3/4"
- T-Slots Number And Size: 3 And 5/8"
- T-Slot Centers: 2-1/2"
- Work Table Weight Capacity (Lbs.): 840
- Travel Of Knee: 16-1/8"
- Travel Of Ram: 15-7/8"
- Saddle Width: 11-1/2"
- Column Width: 20"
- Inverter Type: Delta, B
- Motor: 3 HP, 230V, 3Ph
- Overall Dimensions (L x W x H): 66" x 63" x 87"
- Weight (Lbs.): 2,860
