JET

Model # :WB535703

MPN #: JT9-714850

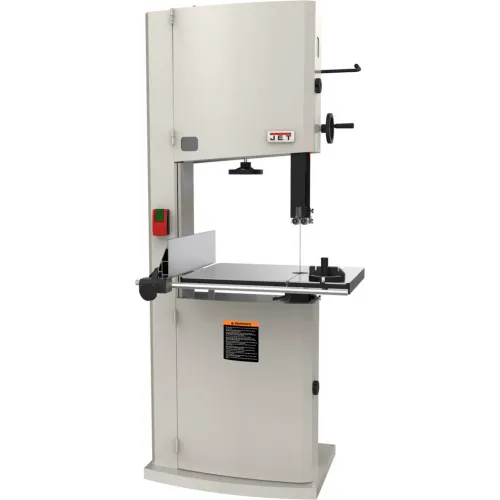

JET JWBS-20-5, 20" Bandsaw, 5HP, 230V

Product Description

The Jet JWBS-20-5, 20" Bandsaw with Steel Frame, 5HP, 1Ph in Woodworking, Bandsaws

Designed to perform, the JET 20' bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20' steel frame bandsaw is engineered to build great projects through superior performance.

  • 16" Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
  • 27-1/4" x 20" precision ground cast iron table for added stability and work support
  • Fence system features a micro-adjustable, dual-position side plate
  • Tool-less, independently adjustable, upper and lower ball bearing guides
  • Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
  • Easy-to-read blade tension scale can be viewed through upper door window
  • Single knob adjustment simplifies the blade tracking process
  • Blade tracking window provides clear view of blade during tracking
  • Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
  • Cast iron trunnion for maximum support and stability
  • PRICE
    $5,299.00

    1
    1
    Ships in 5 Business Days
    Add or Change Zip Code(s)
    Easy online or call-in returns. Read return policy

    Weights & Dimensions

    Table Size (L x W)27-1/4 x 20 in
    Size20-1/4 in
    Blade Length158 in
    Min Blade Width1/8 in
    Cutting Capacity Width20 in
    Cutting Height16 in
    Dust Port Diameter4 in
    Max Blade Width1-1/2 in
    Top Height37 in

    Product Details

    TypeBandsaw
    Dust Collection Mininum CFM Required400 CFM
    Amperage22 A
    Table Tilt-5,45 °
    Blade Speed2530/4850 SFPM
    StyleFloor
    Voltage230 V
    Phase1
    Manufacturers Part NumberJT9-714850
    Motor Horsepower5 HP
    BrandJET
