Leeson

Model # :T9FB588446

MPN #: 114889.00

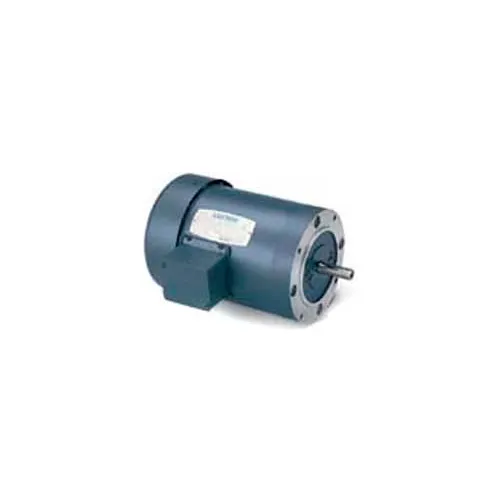

Leeson 114889.00, 0.33 HP, 1425 RPM, 220/380/440V, 50 Hz, 56C, IP54, C-Face Footless

Product Description
Our line of 50 HZ General Purpose motors are totally enclosed fan cooled designed, 12-lead motors. Applications would include compressors, pumps, conveyors, fans and blowers. Rigid base and C-Face motors are available.

PRICE
$689.00

Min. purchase quantity is 2
2
2
Free Shipping Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length19-5/8 in
Width10-5/8 in
Height11-1/4 in

Product Details

Horsepower1/3 HP
ApplicationsGear Reducers, Pumps, Machine Tools, Fans And Blowers, Material Handling, Compre
Frame56C
Hertz50 Hz
Motor RPM 50 Hertz1425 rpm
Enclosure TypeIP
Mounting LocationC-Face Footless
Voltage220/380/440 V
Phase3
Nameplate RPM1425 rpm
Full Load Amps1.7/1/.85 FLA
Frame MaterialRolled Steel
Manufacturers Part Number114889.00
EnclosureIP54
Service Factor1.15
RPM Range1401-1500 rpm
BrandLeeson
Ambient Temperature40 °C
