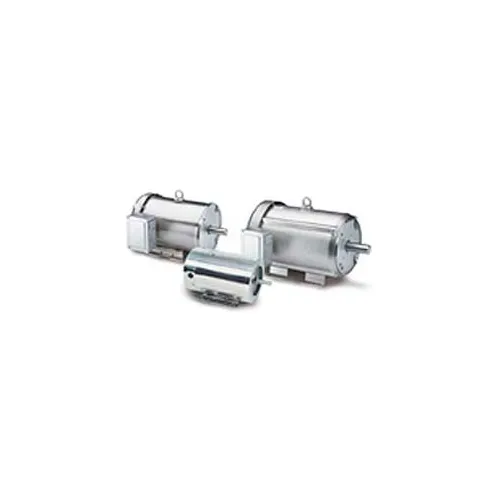

Leeson Motors 3-Phase Washguard Duty Motor 1HP, 3600RPM, 56HC, TENV, 230/460V, 60HZ, 1.15SF

General Purpose, 3-Phase Motor: 3/4HP, 850 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 145 Frame, Rigid Mount, 208-230/460V, 3PH, 60HZ, Name Plate Amps 3.2/1.6, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 0, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Diameter 7/8. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. ...

Our line of three-phase AC motors are designed to both EPACT and Premium energy-efficiency mandates. They meet the energy efficiency requirements of the United States and Canada for general-purpose industrial motors while delivering new levels of starting torque, overload capability and reliability. We have both ODP and Enclosed designs in frame construction of either rolled steel, Aluminum or Cast Iron and HP ratings of 1/6 HP through 700 HP.

Leeson Motor-1/2HP, 208-230/460V, 3450RPM, TENV, C Face Mount, 1.15 SF, 82.5 Eff. Made of rolled steel or stainless steel for long lasting durability. Totally enclosed non-ventilated (TENV) enclosure with no vent openings. Machined face mount with pilot on shaft end allows direct mounting with pump or other direct coupled equipment. Bolts pass through mounted part to threaded hole in motor face. Enclosure with no vent openings tightly enclosed to prevent free exchange of air, but not airtight. No external cooling fan and relies on convection for cooling. Suitable for use where exposed to ...

Leeson 3-Phase, Totally Enclosed Fan Cooled Motor - 1/3 HP - Rigid or Resillient Base This 1/3 horsepower, 1725 RPM motor is solidly manufactured for long lasting durability and dependability. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations. 48 Frame, Rigid Or ...

A new and expanded line of Coupler Brakes designed for applications where mounting the brake between the motor and driven load is the preferred, or most convenient, location. They are an excellent problem solver for applications where a brake needs to be added to existing equipment - without replacing the motor. Rugged cast alumimum or cast iron construction Stearns brakes are well suited to most industrial applications. Coupler brakes are designed to be C-face connected on both ends - these brakes are not suited for overhung loads to be applied to the output shaft.
