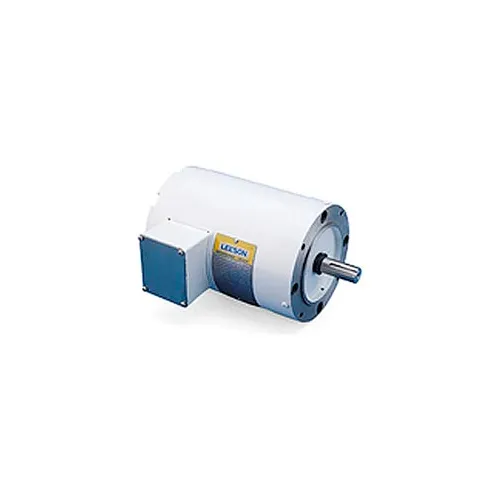

Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 1725/1425RPM, TEFC, ROUND, 1.15 SF, 74 Eff.

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 1725/1425RPM, TEFC, ROUND, 1.15 SF, 74 Eff.

Item #: WBB228041

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$723.00 up to 46% OFF

Price: $408.95

Save $20.45 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $408.95 ea.
  • Buy 3+ $392.95 ea.

Quantity

Customers Also Viewed

Washguard White Epoxy Coated Motor, 3-Phase: 1/2HP, 1725/1425 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, ROUND, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 2/1&1.8/.9, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 74, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length: 1-7/8", Shaft Diameter: 5/8".

Enhanced performance in wet, humid areas

  • Durable RUST-OLEUM® white epoxy coating
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1.0 SF

  • HORSEPOWER 1/2
  • ENCLOSURE TEFC
  • FRAME 56
  • BRAND Leeson
  • MOUNTING C-Face Footless
  • MOTOR RPM 60Hz 1725
  • RPM 1725
  • PHASE 3
  • VOLTAGE 208-230/460
  • NAMEPLATE AMPS 2/1&1.8/.9
  • HERTZ 60/50
  • SERVICE FACTOR 1.15
  • THERMAL PROTECTION No
  • EFFICIENCY TYPE Standard
  • CONSTRUCTION Rolled Steel
  • AMBIENT TEMP C 40
  • SHAFT DIAMETER 5/8
  • SHAFT LENGTH INCHES 1-7/8
  • ROTATION CCW/CW
  • ENCLOSURE TYPE Totally Enclosed
  • WEIGHT 23
  • UL Y
  • CSA Y
  • LEESON MODEL NO. C6T17WC24CC
  • UPC 69172034348
  • DUTY Continuous
  • RPM RANGE 1701-1800
  • MANUFACTURER PART # 116644.00
  • FL AMPS 2/1
  • BEARING-DRIVE-END 6205
  • DESIGN Sq Cage Inductor Run
  • CATALOG NUMBER 116644.00
  • FL EFFICIENCY 74
  • is_motor Yes
