Leeson

Model # :WBB587519

MPN #: 113919.00

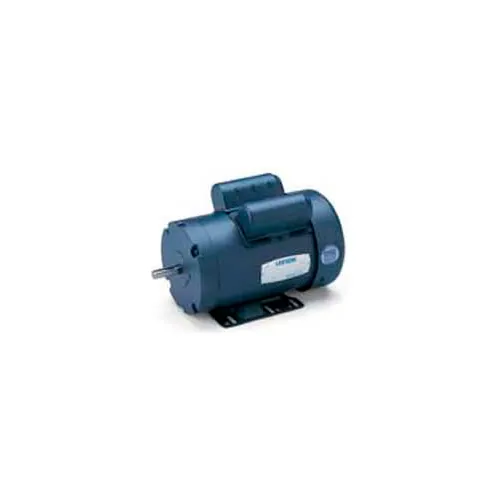

Leeson Motors Single Phase General Purpose Motor 50HZ, 1HP, 75KW, 2850RPM, 56, IP54, 110/220V1SF

Product Description
LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures.

Features include:

  • Durable rolled steel frame
  • Class B insulation
  • High-quality ball bearings
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
  • UL Recognized Component Listing and CSA approval.
  • Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
PRICE
$769.00

Min. purchase quantity is 2
2
2
Free Shipping Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length14 in
Width8 in
Height9 in

Product Details

Horsepower1 HP
ApplicationsGear Reducers, Pumps, Machine Tools, Fans And Blowers, Material Handling, Compre
Frame56
Hertz50 Hz
Motor RPM 50 Hertz2850 rpm
Enclosure TypeIP
Mounting LocationRigid
Voltage110/220 V
Phase1
Nameplate RPM2850 rpm
Full Load Amps13.2/6.6 FLA
Frame MaterialRolled Steel
Manufacturers Part Number113919.00
EnclosureIP54
Compatible Part/Model NumberBaldor L3509-50
Service Factor1
RPM Range1801-3000 rpm
BrandLeeson
Ambient Temperature40 °C
