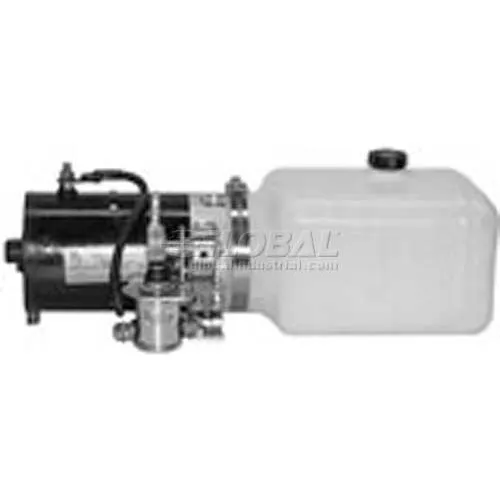

Buyers Manual 3-Way Release Valve DC Power Unit, PU311, Gal Poly Reservoir, .250"/.375" NPTF Outlets

.090 thick 316 stainless steel construction. Welded carbon steel mounting brackets. 1/4 turn chrome filler breather w/strainer basket. Oil level gauge with temperature indicator. Interior baffle between suction and discharge. 1-1/4" NPT suction port. Magnetic drain plug. Fully tested Pre drilled for tank mounted filter, included w/ SMR30SS10 & SMR30SS25 (shipped separately) Can be shipped UPS

Combination warning light & buzzer operate simultaneously for two way warning of hazardous conditions. For 12 VDC electrical systems. Red lens, snaps out for easy bulb replacement. (bulb included) 0.2 AMPS max draw 70 DB at 3 ft.

Pump/motor/reservoir Externally adjustable system relief valve Check valve Cartridge valves are located outside the reservoir on manifold block. 4-way/3-way function C-1 & C2 plow angle 1200 PSI crossover relief C-3 2000 PSI .250" NPTF outlet ports Factory wired control station and cable Triple filtration: suction, high pressure return and valve Horizontal mounting Plow lift and Plow angle

Pump/motor/reservoir Externally adjustable system relief valve 4-way/3-way valve, banked 4-way valve is tandem center rotary shear type with .250" NPTF outlets 3-way valve has checked cylinder port and .250" NPTF outlet Valve assembly is fitted with electrical contacts for synchronizing valve with motor Rod and ball handles Suction filter Horizontal mounting Power Up - Gravity Down and Power Up - Power Down

Assembly provides access for reservoir cleaning and internal suction strainer Flange only provides mounting surface for tank mounted return filter
