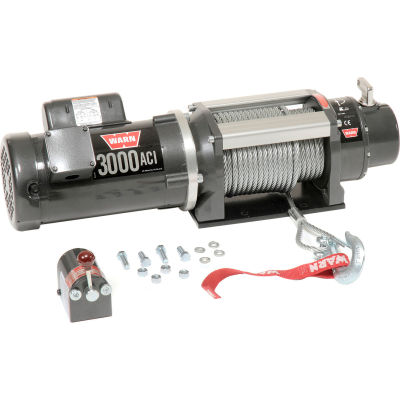

Warn® 3000ACI AC Powered Warn Winch
Works wherever AC power is available. Great tool for fixed mount pulling situations. This utility winch is well suited for a variety of uses, such as for use on the job site by arborists and other contractors to
pull and position heavy equipment, machinery or materials, pulling firewood up a steep hill, to moving landscaping shrubs and trees. Designed around a 0.75 hp. totally enclosed, fan-cooled motor that stands up to longer duty cycles. The WARN Works 3000ACI is a 3000 lb. rated pull winch powered by a 120V/60 Hz 1-Phase AC source and a drum-style station switch that controls power in and out. It has an all-metal gear housing and a three-stage planetary gear design with a 216:1 gear ratio. The lever-actuated, sliding ring gear clutch allows for free spooling, and a mechanical braking system holds the full rated load.
· 3000 lb. pulling capacity (single line)
· Complete with integrated mounting plate and drum-style station switch
· 0.75 hp totally enclosed, fan-cooled induction motor uses 120V 1-phase AC source
· Robust 3-stage planetary gear design
· Lever-actuated, sliding ring gear clutch allows free spool
· Includes 100' of 5/16" wire rope with safety-clasp hook
· 24-1/2"L x 8-1/4"W x 7-3/4"H; weighs 76 lbs.
· Mounting Hole Pattern: 4-holes, 4.5" x 4.1"
· Electrical Leads: None
1 Year Limited Warranty
| Performance Specs |
| Load Lbs. |
Current Amps |
Speed Ft./Min. |
| 0 |
9.1 |
12.2 |
| 1000 |
11.0 |
8.8 |
| 1500 |
12.7 |
8.8 |
| 2000 |
14.8 |
8.6 |
| 2500 |
17.7 |
8.5 |
| 3000 |
20.9 |
8.1 |
