Modine

Model # :WBB936351

MPN #: V95SB01SA

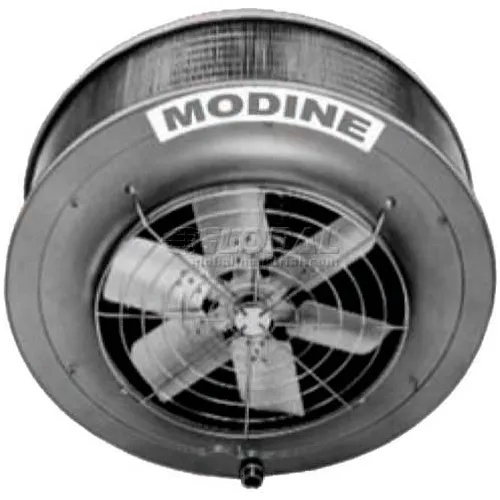

Modine Vertical Unit Heater V95SB01SA, 95000 BTU, 1665 CFM, 115V

Product Description
Modine Vertical Unit Heater V95S01, 95000 BTU, 1665 CFM, 115V

Vertical delivery unit heaters are ideal for heating buildings with high ceilings or areas that require the heater to be mounted above obstructions such as crane ways. Selection from a variety of heat throw patterns is made easy by choosing from four types of air deflectors. Heat throw patterns range from a high-velocity narrow jet to a gentle-velocity broad based cone of heated air.

Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.

Click below to view the following:
PRICE
$1,749.00

1
1
Ships in 90 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height13-1/2 in
Diameter24-3/4 in
Max Mounting Height21 ft
Heat Spread16 ft

Product Details

Hot Water Final Air Temperature101 °F
Water Flow7.2 gal/min
MaterialSteel
Phase1
Manufacturers Part NumberV95SB01SA
BrandModine
TypeSteam & Hot Water Heater
CFM1665 CFM
Horsepower1/15 HP
ColorGray
Amperage2.4 A
Steam Final Air Temperature118 °F
Airflow DirectionVertical
Input (BTU/H) 2 lb Steam 60°F Entering Air95000 BTU/hr
Voltage120 V
IncludesElectric Junction Box, Outlet Fan Guard, Copper Tubing
Amps High2.4 A
Power Cord TypeElectric Junction Box
Output (BTU) Hot Water 200°F In 60°F Entering Air69300 BTU

Warranty

Warranty1 yr

Compliance & Certifications

CertificationscETLus, cCSAus
