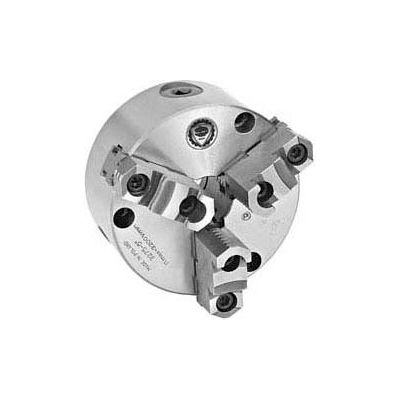

Bison 3-Jaw (2 Piece) Scroll Chuck Semi-Steel Body, Front Mount, 10" Plain Back

Bison 3-Jaw (2 Piece) Scroll Chuck Semi-Steel Body, Front Mount, 10" Plain Back

Item #: WBB608577

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 6"
  • 8"
  • 12"
  • 25"
  • 10"
  • 4"
  • 5"
  • 3"
  • 2"
  • 20"
  • 16"
  • 32"

10"

  • SELECT
  • Front Mount Plain Back
  • Camlock D1-6
  • Plain Back
  • Taper A2-6
  • Camlock D1-8
  • Quick Clamping Plain Back
  • Fine Adjustable Plain Back
  • Camlock D1-4
  • Camlock D1-11
  • Taper A1-6
  • Threaded Mount 1-1/2"-8
  • Taper A2-11
  • Long Taper L1
  • Long Taper L00
  • Threaded Mount 2-1/4"-8

Front Mount Plain Back

$983.06 up to 9% OFF

Price: $895.00

$149.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $895.00 or save 5% on purchase.

Quantity

Customers Also Viewed

3-Jaw (2pieces) Scroll Chuck, Front Mount, 10"
  • High quality Cast Iron body
  • 2-piece reversible top hard jaws
  • Plain back

Product Specifications

  • DESCRIPTIONLathe Chuck
  • WEIGHT LBS52 Lbs
  • CLAMPING RANGE-d1 (MIN-MAX).197 - 4.65
  • CLAMPING RANGE-d2 (MIN-MAX)3.39 - 7.76
  • CLAMPING RANGE-d3 (MIN-MAX)6.30 - 9.84
  • CLAMPING RANGE-d4 (MIN-MAX)2.28 - 6.50
  • CLAMPING RANGE-d5 (MIN-MAX)4.92 - 9.25
  • DIMENSION C0.1969"
  • DIMENSION E (H7)7.874"
  • DIMENSION F8.8189"
  • DIMENSION H3.347"
  • DIMENSION-h2.087"
  • CHUCK DIAMETER D10"
  • DIAMETER10"
  • MATERIALSemi-Steel
  • BRANDBison
  • STYLEFront Mount Plain Back
  • COUNTRY OF ORIGINImport
  • NUMBER OF JAWS3
  • SCREWS THREAD G1/2-13 x 3.54
  • TYPESelf-Centering
  • NUMBER OF SCREWS6
  • NUMBER OF PIECES2
  • MANUFACTURER'S PART NUMBER7-812-1000
  • SCREWS THREAD MM12
  • HOLE DIAMETER D2.9921"
