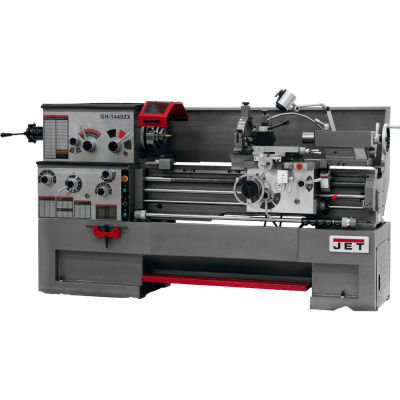

Jet 321531 GH-1440ZX Large Spindle Bore Lathe W/Collet Closer, 7-1/2 HP

Jet 321531 GH-1440ZX Large Spindle Bore Lathe W/Collet Closer, 7-1/2 HP

Item #: WBB0230854

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • SWISS CUT 8050 Cutting Fluid - 1 Gallon Container

    $35.95

  • JET® 321520 TAK-GHW Taper Attachment Kit

    $2,799.00

  • Bison Wrench for Scroll Chuck, 10" & 1 2" Chuck, square size .551"

    $59.95

$25,828.57 up to 18% OFF

Price: $21,199.00

$3,533.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $21,199.00 or save 5% on purchase.

Quantity

Customers Also Viewed

JET 321531 GH-1440ZX Large Spindle Bore Lathe W/Collet Closer, 7-1/2 HP

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

Features:
  • Uniquely designed exclusively by JET
  • ISO 9001 certified manufacturer
  • 3-1/8 bore spindle is supported by two tapered and one ball bearing
  • Chrome molybdenum headstock gears are hardened, ground and shaved
  • Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
  • Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
  • T-slotted compound slide featuring four-way tool post
  • One piece cast iron base absorbs vibration allowing heavier cuts
  • High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
  • Removable gap allows up to 23-5/8 diameter work on 16, 27-1/2 on 18
  • Five position automatic carriage stop increases productivity
  • Attractive chrome levers, dials and knobs complete this impressive package
  • Tolerance test certificate included
  • 10 3 jaw chuck with top reversing jaws
  • 16 face plate
  • Four-way tool post
  • Follow rest
  • Large capacity steady rest
  • Fully integrated coolant system
  • Full length splash guard and coolant return
  • Large easy to use foot brake
  • Articulating halogen work lamp
  • Centrally located controls with jog button
  • Threading dial
  • Mounting pads and levelers


Product Specifications

  • CARRIAGE TRAVEL (IN.)36-9/16
  • COMPOUND SLIDE TRAVEL (IN.)5-1/8
  • CROSS SLIDE TRAVEL (IN.)9
  • DISTANCE BETWEEN CENTERS (IN.)40"
  • FOLLOW REST CAPACITY (IN.)1/2 - 3-1/2
  • LENGTH OF GAP (IN.)12
  • MAX. TOOL SIZE (IN.)1 x 1
  • MOTOR7-1/2 HP, 230/460V, 3 Ph, Prewired 230V
  • NUMBER OF INCH THREADS61
  • NUMBER OF LONGITUDINAL AND CROSS FEEDS122
  • NUMBER OF METRIC THREADS24
  • NUMBER OF SPINDLE SPEEDS12
  • RANGE OF CROSS FEEDS (IN./REV.).0006 - .0365
  • RANGE OF INCH THREADS (TPI)1-5/8 - 72
  • RANGE OF LONGITUDINAL FEEDS (IN./REV.).0015 - .0913
  • RANGE OF SPINDLE SPEEDS (RPM)42 - 1,800
  • SPINDLE BORE (IN.)3.125"
  • SPINDLE MOUNTD1-8
  • SPINDLE TAPER (WITH SLEEVE)MT-7 (MT-5)
  • STEADY REST CAPACITY (IN.)3/8 - 7
  • SWING OVER BED (IN.)14
  • SWING OVER CROSS SLIDE (IN.)7-5/8"
  • SWING THROUGH GAP (IN.)18
  • TAILSTOCK SPINDLE TRAVEL (IN.)5
  • TAPER IN TAILSTOCK SPINDLEMT-4
  • WIDTH OF BED (IN.)13-3/8
  • BRANDJET®
  • DRONone
  • COLLET CLOSERYes
  • LIMITED WARRANTY2-Year Warranty
  • TAPER ATTACHMENTNo
  • STYLELarge Spindle Bore
  • RANGE OF CROSS FEEDS (IPR).0006 - .0365
  • MAX TOOL SIZE (IN.)1 X 1
  • ACCESSORIESCollet Closer
  • RANGE OF METRIC THREADS MM0.5 - 20
  • MODELGH-1440ZX
  • PREWIRED230
  • MANUFACTURERS PART NUMBER321531
  • MOTOR PHASE3 Ph
  • MOTOR HORSEPOWER7.5 HP
  • RANGE OF LONGITUDINAL FEEDS (IPR).0015 - .0913
