Jet 350018 JMD-18 Milling/Drilling Machine W/R-8 Taper, 2HP, 115/230V, 1-Phase
See all 13 items in product family

Jet 350018 JMD-18 Milling/Drilling Machine W/R-8 Taper, 2HP, 115/230V, 1-Phase

Item #: WBB0503533

Sold By: globalindustrial.com

Out of stock, please check back soon. Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

List Price: $2,892.86 Save up to 21%
Price: $ 2,299.00
Product Information
Customer Review
Product Q&A
Accessories

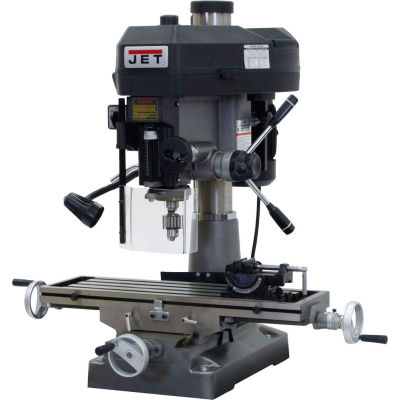

Jet 350018 JMD-18 Milling/Drilling Machine W/R-8 Taper, 2HP, 115/230V, 1-Phase

Mill drills are a lighter alternative to a Milling machine. These combine a belt driven drill press with the dual coordinate abilities of the Milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

Features:
  • Milling/Drilling Machines
  • One-piece cast iron column for added support
  • Belt cover quick slide latch allows faster belt adjustment to change spindle speeds
  • Base taper allows for easier clean-up
  • Larger hand wheel knobs
  • UL Listed motor
  • Extra large worktable
  • Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
  • New positive quick-stop knob and easy-to-read internal depth gauge (external on JMD-15)
  • 360? head swivel
  • Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
  • Three power down feeds (JMD-18PFN .004, .007, .01)
  • Worklamp
  • Adjustable carbide facemill
  • Drill press angle vise
  • 1/2 drill chuck, chuck arbor
  • Draw bar


Documents

Documents are in PDF format

Product Specifications

    • BASE DIMENSIONS INCHES 15-3/4 X 23-3/4
    • COLUMN DIAMETER INCHES4-1/2
    • DRILLING CAPACITY INCHES1-1/4
    • MOTOR2HP, 230V Only, 1Ph
    • NUMBER OF SPINDLE SPEEDS12
    • OVERALL DIMENSIONSL 43" X W 40" X H 44"
    • RANGE OF SPINDLE SPEEDS (RPM)150 - 3,000
    • SPINDLE TAPERR-8
    • SWING INCHES15-7/8
    • TABLE SIZE INCHES9-1/2 x 32-1/4
    • WEIGHT LBS595
    • BRANDJET®
    • LENGTH INCHES 42.5
    • DRONone
    • MAX DISTANCE TABLE TO SPINDLE18
    • SWING (IN.)15-7/8
    • SPINDLE TRAVEL (IN.)5
    • POWERFEEDNone
    • TABLE LONGITUDINAL TRAVEL (IN.)20-1/2
    • QUILL DIAMETER (IN.)3
    • QUILL DIAMETER INCHES3
    • MOTOR VOLTAGE115/230
    • WIDTH INCHES39.75
    • LIMITED WARRANTY2-Year Warranty
    • MOTOR PHASESingle
    • MAX DISTANCE SPINDLE TO TABLE18
    • HEIGHT INCHES43.5
    • SIZE15-7/8
    • MODELJMD-18
    • MOTOR HORSEPOWER2
    • TABLE CROSS TRAVEL (IN.)6-1/2
    • END MILLING CAPACITY INCHES3/4
    • FACE MILLING CAPACITY INCHES3
    • WORK TABLE WEIGHT CAPACITY (LBS.)400
    • T-SLOTS CENTERS (IN.)1-13/16
    • QUILL TRAVEL (IN.)5
    • MANUFACTURERS PART NUMBER350018
    • T-SLOTS NUMBER AND SIZE (IN.)4 & 5/8
    • COLUMN DIAMETER (IN.)4-1/2
