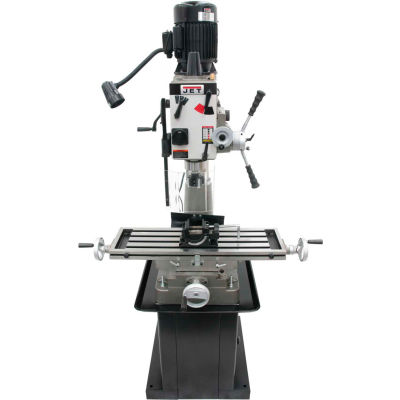

JET® JMD-40G Horse PowerF Geared Head Mill Drill with Power Downfeed 1-1/2HP, 115/230V, 1Ph

JET® JMD-40G Horse PowerF Geared Head Mill Drill with Power Downfeed 1-1/2HP, 115/230V, 1Ph

Item #: WBB2331340

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Jet 650211 20 Piece TiN Coated Single End Mill Set

    $139.00

  • Jet 660125 Coolant System With Motor And Tray For JTM949EVS And 1050EVS Mills

    $450.00

  • Jet A635 Adjustable Swing Away Safety Shield

    $99.00

$5,218.57 up to 18% OFF

Price: $4,299.00

$716.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,299.00 or save 5% on purchase.

Quantity

JET® JMD-40G Horse PowerF Geared Head Mill Drill with Power Downfeed 1-1/2HP, 115/230V, 1Ph

Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.

Features:

  • Heavy-duty design allows for a variety of precision drilling applications
  • Full power to the cutting tools through 6 speed geared head
  • CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
  • Spindle guard
  • Work Lamp
  • Calibrated fine down feed built in
  • Easy to read internal depth gauge
  • Head tilts left & right 90°
  • Rapid spindle speed changes through quick-select gear shift levers
  • Forward/reverse switch
  • Power Downfeed standard
  • Milling table allows for movement
  • R8 spindle allows use of all mill tooling
  • Mill Drill Stand, p/n 350045, shown in some images, is optional

Product Specifications

  • BASE DIMENSIONS INCHES 24-1/4 x 15-15/16
  • COLUMN DIAMETER INCHES4-1/2
  • DRILLING CAPACITY INCHES1-1/2
  • NUMBER OF SPINDLE SPEEDS6
  • RANGE OF SPINDLE SPEEDS (RPM)65-1550
  • SPINDLE TRAVEL INCHES5
  • BRANDJET®
  • LENGTH INCHES 28
  • DRO--
  • POWERFEED--
  • LONGITUDINAL TRAVEL INCHES 20-1/2
  • MANAUFACTURER WARRANTY2 Years
  • SPINDLE TAPER (IN X TPI)R8
  • MAX DISTANCE SPINDLE TO TABLE (IN)15-3/4
  • QUILL DIAMETER INCHES3
  • MODELJMD-40GHPF
  • SWING (IN.)21
  • WIDTH INCHES39-1/4
  • HEIGHT INCHES42-1/2
  • WEIGHT LBS.721
  • MANUFACTURERS PART NUMBER351041
  • HORSEPOWER1-1/2
  • T-SLOTS NUMBER AND SIZE (IN.)4 & 5/8
  • MOTOR PHASESingle
  • FACE MILLING CAPACITY INCHES4
  • END MILLING CAPACITY INCHES3/4
  • TABLE SIZE (L" X W")8-1/4" x 28-3/4"
  • Spindle Travel Auto Inches4-1/2
  • MOTOR VOLTAGE115/230
