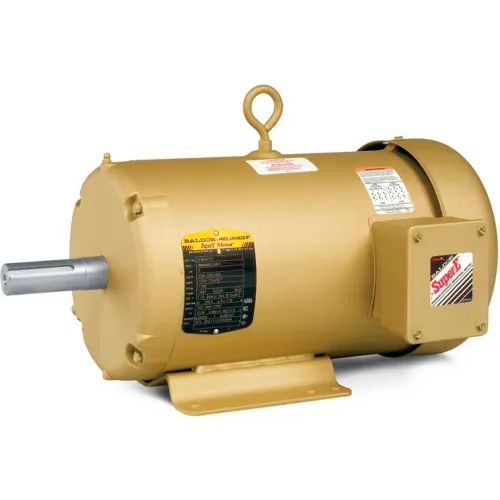

Baldor-Reliance Metric IEC Motor, EMM3558, 3PH, 208-230/460V, 1755RPM, 1.5/2 KW/HP, 60Hz, D90L

General Specifications: These Metric motors are built to IEC 34-1 electrical and mechanical specifications. The IEC 63 and smaller frames are stocked with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A unique modular approach for IEC 71 frame and larger allows the motor to field modified to B3 rigid base mounted construction using conversion kits. Electrical and Mechanical Features: Terminal Board provided for connections Fasteners are Metric Tachometer mounting kits available

General Specifications: These Metric motors are built to IEC 34-1 electrical and mechanical specifications. The IEC 63 and smaller frames are stocked with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A unique modular approach for IEC 71 frame and larger allows the motor to field modified to B3 rigid base mounted construction using conversion kits. Electrical and Mechanical Features: Terminal Board provided for connections Fasteners are Metric Tachometer mounting kits available

Metric(IEC), B3 Footed Motor: 20HP, 1765/1460 RPM, Weatherproof (IP55) Enclosure, 160L Frame, B3, 230/460V, 3PH, 60/50HZ, Name Plate Amps 47.6/23.8&54.6/27.3, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 91.7, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation. Meets North American performance standards and EPACT energy efficiency mandates. Features 1.15 service factor and B3 footed mounting. Typically used for replacement on machine tools, textile machinery and other equipment with metric dimensions but requiring the heavy-duty torque and performance of ...

General Specifications: These Metric motors are built to IEC 34-1 electrical and mechanical specifications. The IEC 63 and smaller frames are stocked with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A unique modular approach for IEC 71 frame and larger allows the motor to field modified to B3 rigid base mounted construction using conversion kits. Electrical and Mechanical Features: Terminal Board provided for connections Fasteners are Metric Tachometer mounting kits available

Baldor-Reliance Motor, .56KW,1725RPM,3PH,60HZ,D80C,3420M,TEFC Features: Conduit box mounted F-2 IEC Standard B14 Face (IEC-B14) Typical Applications: Pumps, fans conveyors, machine tools, gear reducers and other applications requiring IEC Metric B14 Face mounting repacements. Click here to see our full selection of
