Marathon Motors Metric Motor, U609A, 182TTFS6031, 3HP, 1800RPM, 575V, 3PH, 182T FR, TEFC

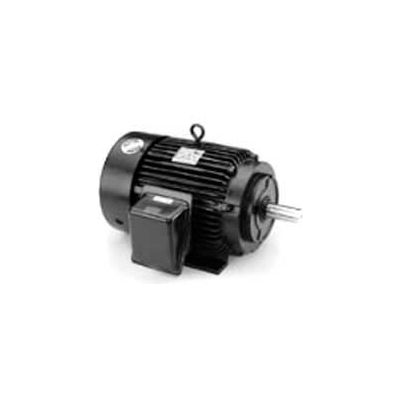

Actual product may differ from image shown

Marathon Motors Metric Motor, U609A, 182TTFS6031, 3HP, 1800RPM, 575V, 3PH, 182T FR, TEFC

Item #: WBB870308

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $517.00

$86.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Metric Motor, U609A, 182TTFS6031, 3HP, 1800RPM, 575V, 3PH, 182T FR, TEFC

Marathon's Three Phase, 575 Volts, 1800 Rpm, TEFC, Rigid Base line of General Purpose Motors. Horsepower sizes available from stock range from 1 HP through 200 HP.

  • HORSEPOWER 3
  • ENCLOSURE TEFC
  • FRAME 182T
  • MOUNTING Rigid
  • NAMEPLATE RPM 1800
  • PHASE 3
  • MOTOR RPM 60Hz 1800
  • VOLTAGE 575
  • HERTZ 60
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 120
  • UL Recognized Construction
  • CSA Y
  • RPM RANGE 1701-1800
  • ENCLOSURE TYPE Totally Enclosed
  • IP CODE 43
  • is_motor Yes
  • ORIENTATION Horizontal
  • MANUFACTURER PART # U609A
  • BRAND Marathon Motors
  • STARTING TYPE Across The Line
  • OPPOSITE END BEARING SIZE 6205
  • DRIVE END BEARING SIZE 6206
  • ASSEMBLY F1 (F2 Modification Available)
  • NEMA DESIGN B
  • APPROVAL-CE Y
  • 50 Hertz FL eFF --
  • KVA-CODE K
  • FL AMPS 3.2
  • INSULATION CLASS F
  • FL EFFICIENCY 90.2
  • BEARING-OPP-DRIVE-END 6205
  • BEARING-DRIVE-END 6206
  • 60 HERTZ kW 2.24
  • MODEL NUMBER 182TTFC6031
