Modine

Model # :WB246450

MPN #: HSB121SB01SA

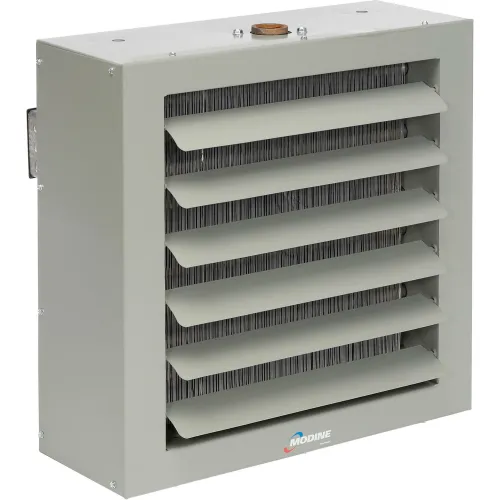

Modine Steam or Hot Water Unit Heater HSB121SB01SA, 121000 BTU

Product Description
MODINE STEAM & HOT WATER HORIZONTAL UNIT HEATERS
Modine 121000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/5 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.

Click below to view the following:
PRICE
$2,049.00

1
1
Ships in 90 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length25-1/2 in
Width16-1/4 in
Height24-7/16 in
Weight76 lbs
Fan Diameter18 in
Connection Size1-1/4 in
Max Mounting Height16 ft
Heat Throw25 ft

Product Details

TypeSteam & Hot Water Heater
Horsepower1/5 HP
Hot Water Final Air Temperature107 °F
ColorGray
Water Flow9.7 gal/min
Steam Final Air Temperature122 °F
Airflow DirectionHorizontal
Input (BTU/H) 2 lb Steam 60°F Entering Air121000 BTU/hr
Voltage115 V
Made in the USAYes
MaterialSteel
Manufacturers Part NumberHSB121SB01SA
Output (BTU) Hot Water 200°F In 60°F Entering Air93000 BTU
BrandModine

Warranty

Warranty1 yr

Compliance & Certifications

CertificationscETLus, cCSAus
