Modine

Model # :WB246443

MPN #: HSB18SB01SA

Modine Steam or Hot Water Unit Heater HSB18SB01SA, 18000 BTU

Product Description
MODINE STEAM & HOT WATER HORIZONTAL UNIT HEATERS

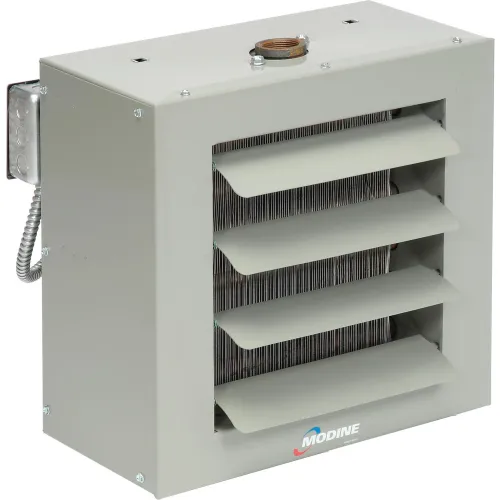

Modine 18000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/60 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.

Click below to view the following:
PRICE
$849.00

1
1
Ships in 90 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length13 in
Width11 in
Height12-3/8 in
Weight16 lbs
Fan Diameter9 in
Connection Size3/4 in
Max Mounting Height8 ft
Heat Throw17 ft

Product Details

TypeSteam & Hot Water Heater
Horsepower1/60 HP
Hot Water Final Air Temperature93 °F
ColorGray
Water Flow1.3 gal/min
Steam Final Air Temperature107 °F
Airflow DirectionHorizontal
Input (BTU/H) 2 lb Steam 60°F Entering Air18000 BTU/hr
Voltage115 V
Made in the USAYes
MaterialSteel
Manufacturers Part NumberHSB18SB01SA
Output (BTU) Hot Water 200°F In 60°F Entering Air12600 BTU
BrandModine

Warranty

Warranty1 yr

Compliance & Certifications

CertificationscETLus, cCSAus
