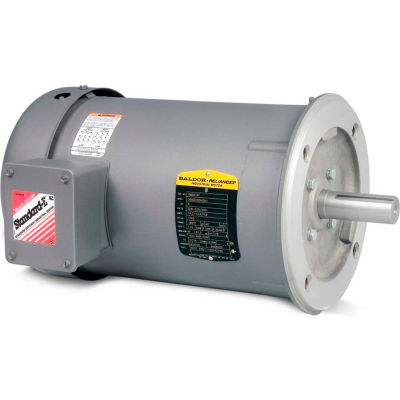

Baldor-Reliance 50 Hertz Motor, VM3537-57, 3 PH, 0.5 HP, 2850 IP44 RPM, 230/400 Volts, TEFC, 56C Frame
Some applications require NEMA motors which operate on true 50 Hz power. Where this 50 Hz power is all that is available, these NEMA motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.
Some applications require NEMA motors which operate on true 50 Hz power. Where this 50 Hz power is all that is available, these NEMA motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.
Product Specifications
- HORSEPOWER1/2
- ENCLOSURETEFC
- FRAME56C
- MOUNTINGC-Face Footless
- NAMEPLATE RPM2850
- PHASE3
- MOTOR RPM 50Hz2850
- VOLTAGE230/400
- HERTZ50
- DUTYContinuous
- SERVICE FACTOR1.25
- AMBIENT TEMP C40
- RPM RANGE1801-3000
- DESIGN CODEB
- BEARING-DRIVE-END6203
- BEARING-OPP-DRIVE-END6203
- FL EFFICIENCY72
- INSULATION CLASSF
- FL AMPS1.9/1.1
- KVA-CODEL
- 208V AMPS--
- BRANDBaldor-Reliance
- MANUFACTURER PART #VM3537-57
- is_motorYes
- ENCLOSURE TYPETotally Enclosed
- POWER-FACTOR74
- C-DIMENSION INCHES11.35
- TYPE50 Hertz Motor
- SPEC. NUMBER34A063X538G1
