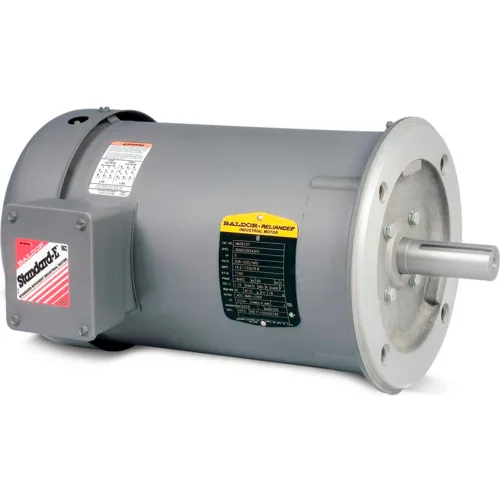

Baldor-Reliance 50 Hertz Motor, KM3454-57, 3 PH, 0.25 IP44 HP, 1425 RPM, 230/400 V,TEFC,56C Frame

Actual product may differ from image shown

Baldor-Reliance 50 Hertz Motor, KM3454-57, 3 PH, 0.25 IP44 HP, 1425 RPM, 230/400 V,TEFC,56C Frame

Item #: WBB909647

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$361.00 up to 26% OFF

Price: $266.95

Save $13.35 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance 50 Hertz Motor, KM3454-57, 3 PH, 0.25 IP44 HP, 1425 RPM, 230/400 Volts, TEFC, 56C Frame

Some applications require NEMA motors which operate on true 50 Hz power. Where this 50 Hz power is all that is available, these NEMA motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.



  • HORSEPOWER 1/4
  • ENCLOSURE TEFC
  • FRAME 56C
  • MOUNTING C-Face Footless
  • NAMEPLATE RPM 1425
  • PHASE 3
  • MOTOR RPM 50Hz 1425
  • VOLTAGE 230/400
  • HERTZ 50
  • DUTY Continuous
  • SERVICE FACTOR 1.25
  • AMBIENT TEMP C 40
  • RPM RANGE 1401-1500
  • SPEC. NUMBER 34A063S886G1
  • TYPE 50 Hertz Motor
  • C-DIMENSION INCHES 11.35
  • POWER-FACTOR 59
  • ENCLOSURE TYPE Totally Enclosed
  • is_motor Yes
  • MANUFACTURER PART # KM3454-57
  • BRAND Baldor-Reliance
  • KVA-CODE L
  • FL AMPS 1.2/.7
  • INSULATION CLASS B
  • FL EFFICIENCY 64
  • BEARING-OPP-DRIVE-END 6203
  • BEARING-DRIVE-END 6203
  • DESIGN CODE B
