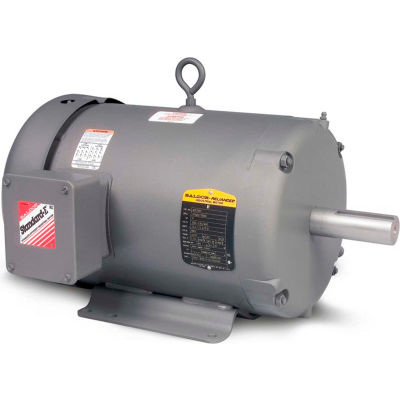

Baldor-Reliance Motor M3539-5, .5HP, 1140RPM, 3PH, 60HZ, 56, 3418M, TEFC, F1, N

Actual product may differ from image shown

Baldor-Reliance Motor M3539-5, .5HP, 1140RPM, 3PH, 60HZ, 56, 3418M, TEFC, F1, N

Item #: WBB391769

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$516.00 up to 20% OFF

Price: $412.95

Save $20.65 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1140RPM,3PH,60HZ,56,3418M,TEFC,F1,N

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where 575 volt three phase power is available.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETEFC
  • FRAME56
  • MOUNTINGRigid
  • NAMEPLATE RPM1140
  • PHASE3
  • MOTOR RPM 60Hz1140
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • WEIGHT24
  • RPM RANGE1101-1200
  • DESIGN CODEB
  • BEARING-DRIVE-END6203
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY72
  • INSULATION CLASSB
  • FL AMPS1
  • KVA-CODEJ
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #M3539-5
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR55
  • DRIVE END FLANGEStandard
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES11.35
  • POLES6
  • SPEC. NUMBER34A61W51
