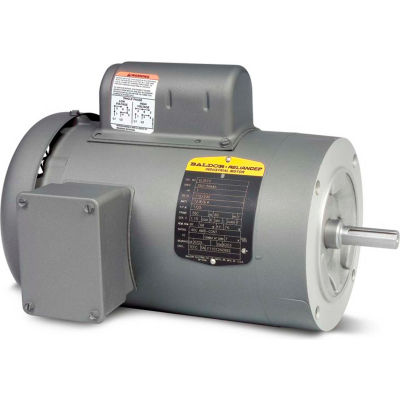

Baldor-Reliance 50 Hertz Motor, VL3504-50, 1 PH, 0.5 HP, 1425 IP44 RPM, 110/220 Volts,TEFC,56C Frame

Rollover image to zoom in

Click image to enlarge

See all 100 items in product family

Baldor-Reliance 50 Hertz Motor, VL3504-50, 1 PH, 0.5 HP, 1425 IP44 RPM, 110/220 Volts,TEFC,56C Frame

Item #: WBB909695

Sold By: globalindustrial.com

Usually ships in 5 to 8 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 373.95

Frequently Purchased Together

Product Information
Customer Review
Product Q&A
Baldor-Reliance 50 Hertz Motor, VL3504-50, 1 PH, 0.5 HP, 1425 IP44 RPM, 110/220 Volts, TEFC, 56C Frame

Some applications require NEMA motors which operate on true 50 Hz power. Where this 50 Hz power is all that is available, these NEMA motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.

Features
  • Heavy gauge steel frame construction
  • Pressue cast aluminum end plates with machined steel bearing inserts for extended bearing life
Application(s)
  • Pumps, fans, gear reducers, conveyors and many other applications with 50 Hz power supply. Motors designed to be used at rated voltage with tolerances of ± 15%.

Documents are in PDF format

Product Specifications

    • HORSEPOWER1/2
    • ENCLOSURETEFC
    • FRAME56C
    • MOUNTINGC-Face Footless
    • NAMEPLATE RPM1425
    • PHASE1
    • MOTOR RPM 50Hz1425
    • VOLTAGE110/220
    • HERTZ50
    • DUTYContinuous
    • SERVICE FACTOR1.25
    • AMBIENT TEMP C40
    • RPM RANGE1401-1500
    • DESIGN CODEN
    • POWER-FACTOR76
    • C-DIMENSION INCHES12.85
    • MANUFACTURER PART #VL3504-50
    • FL AMPS7.2/3.6
    • INSULATION CLASSB
    • ENCLOSURE TYPETotally Enclosed
    • SPEC. NUMBER34C63W233
    • TYPE50 Hertz Motor
    • BEARING-DRIVE-END6203
    • FL EFFICIENCY62
    • 208V AMPS--
    • BRANDBaldor-Reliance
    • KVA-CODEJ
    • BEARING-OPP-DRIVE-END6203
    • is_motorYes
