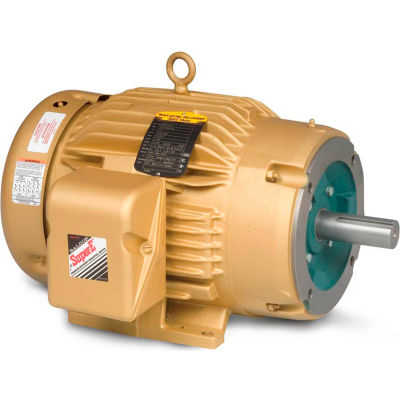

Baldor-Reliance Motor CEM4316T, 75HP, 1780RPM, 3PH, 60HZ, 365TC, 1482M, TEFC

Actual product may differ from image shown

Baldor-Reliance Motor CEM4316T, 75HP, 1780RPM, 3PH, 60HZ, 365TC, 1482M, TEFC

Item #: WBB388723

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$10,127.00 up to 21% OFF

Price: $8,026.00

$1,337.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $8,026.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 75HP,1780RPM,3PH,60HZ,365TC,1482M,TEFC

Features:
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER75
  • ENCLOSURETEFC
  • FRAME365TC
  • MOUNTINGRigid
  • NAMEPLATE RPM1780
  • PHASE3
  • MOTOR RPM 60Hz1780
  • VOLTAGE230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT--
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END65BC03J30X
  • BEARING-OPP-DRIVE-END65BC03J30X
  • FL EFFICIENCY95.4
  • INSULATION CLASSF
  • FL AMPS171/85.9
  • KVA-CODEG
  • BRANDBaldor-Reliance
  • MANUFACTURER PART #CEM4316T
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES32.84
  • SERIAL-NUMBER--
  • TYPEP
  • POLES4
  • SPEC. NUMBERP36G4664
