Home Motors & Power Transmission Electric Motors-General Purpose Premium Efficiency Motors Baldor-Reliance Single Phase Premium Efficiency Motors

Actual product may differ from image shown

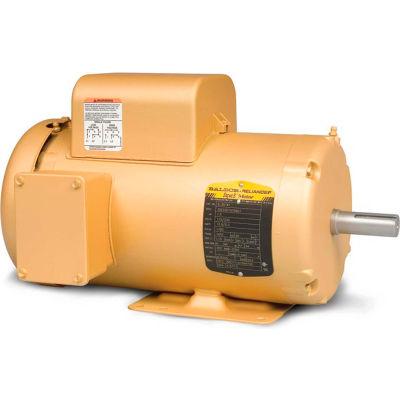

Baldor-Reliance Motor EL3514, 1.5HP, 1760RPM, 1PH, 60HZ, 56H, 3540LC, TEFC, F

Rollover image to zoom in

Click image to enlarge

Video - Click to Play
See all 71 items in product family

Baldor-Reliance Motor EL3514, 1.5HP, 1760RPM, 1PH, 60HZ, 56H, 3540LC, TEFC, F

Print

Item #: WBB390190

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $768.00 Save up to 29%
Qty Price
1-2 $567.00 ea.
3+ $545.00 ea.

Frequently Purchased Together

Add to list

Customers Who Viewed This Also Viewed

Product Information
Customer Review
Product Q&A
Baldor-Reliance Motor, 1.5HP,1760RPM,1PH,60HZ,56H,3540LC,TEFC,F

Features:
  • Heavy gauge steel frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant)copper windings
  • Low-loss electrical grade laminations steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E single phase motors are designed to conserve energy over extended time periods.

Documents are in PDF format

Product Specifications

    • HORSEPOWER1.5
    • ENCLOSURETEFC
    • FRAME56H
    • MOUNTINGRigid
    • NAMEPLATE RPM1760
    • MOTOR RPM 60Hz1760
    • VOLTAGE115/230
    • HERTZ60
    • SERVICE FACTOR1.15
    • AMBIENT TEMP C40
    • WEIGHT57
    • DESIGN CODEL
    • POWER-FACTOR94
    • C-DIMENSION INCHES15.18
    • MANUFACTURER PART #EL3514
    • FL AMPS12.6/6.3
    • INSULATION CLASSF
    • POLES4
    • SPEC. NUMBER35J385S759G1
    • BEARING-DRIVE-END6205
    • FL EFFICIENCY84
    • 208V AMPS--
    • SERIAL-NUMBER--
    • BRANDBaldor-Reliance
    • KVA-CODEJ
    • DRIVE END FLANGEStandard
    • DOE-CODE--
    • BEARING-OPP-DRIVE-END6203
    • is_motorYes
