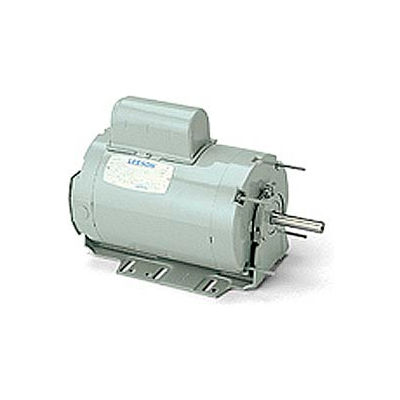

Leeson Motors - 1HP, 115/230V, 1625RPM, TENV, Resil Mount, 1.0 S.F.

Actual product may differ from image shown

Leeson Motors - 1HP, 115/230V, 1625RPM, TENV, Resil Mount, 1.0 S.F.

Item #: WBB217578

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$720.00 up to 55% OFF

Price: $321.95

Save $16.10 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Agricultural Motor: 1HP, 1625RPM, 56H Frame, Totally-Enclosed Non-Ventilated (TENV), 115/230V, 1PH, AIROVER duty, Automatic thermal protection, 1.0 Service Factor, Resil Mount.

These fan and blower duty motors are designed for dependable, energy saving performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than on other types of single phase motors. This design is also more energy efficient and less expensive to operate. These motors may be operated at listed speed or two speed operation may be achieved by using the proper auxiliary switch. Overload protected with an automatic reset protector. Grounding provisions. Totally enclosed, dust tight design, with resilient mounting for quiet operation. Lubricated with quiet running high temperature lubricant. Corrosion resistant finish for tough applications. Because of the inherently low starting torques of this design, these motors are not suitable for belt driven fan applications. They must be mounted within the air stream of the driven fan.



Product Specifications

  • HORSEPOWER1
  • ENCLOSURETENV
  • FRAME56H
  • BRANDLeeson
  • MOUNTINGResilient Base
  • MOTOR RPM 60Hz1625
  • RPM1625
  • PHASE1
  • VOLTAGE115/230
  • COMPATIBLE WITH/REPLACESBaldor CHC545A, WEG 0118ES1BRBPFD56
  • HERTZ60
  • SERVICE FACTOR1
  • THERMAL PROTECTIONAutomatic
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT42
  • ULY
  • CSAY
  • LEESON MODEL NO.A6P17NR2GG
  • UPC69172000976
  • BASEResilient
  • DUTYAirover
  • RPM RANGE1501-1700
  • is_motorYes
  • DESIGNPSC 1 Speed
  • BEARING-DRIVE-END6203
  • FL AMPS8.8/4.4
  • MANUFACTURER PART #111267.00
